Roof moulding/Roof rail for BMW 6 Series E63 645Ci (2005)

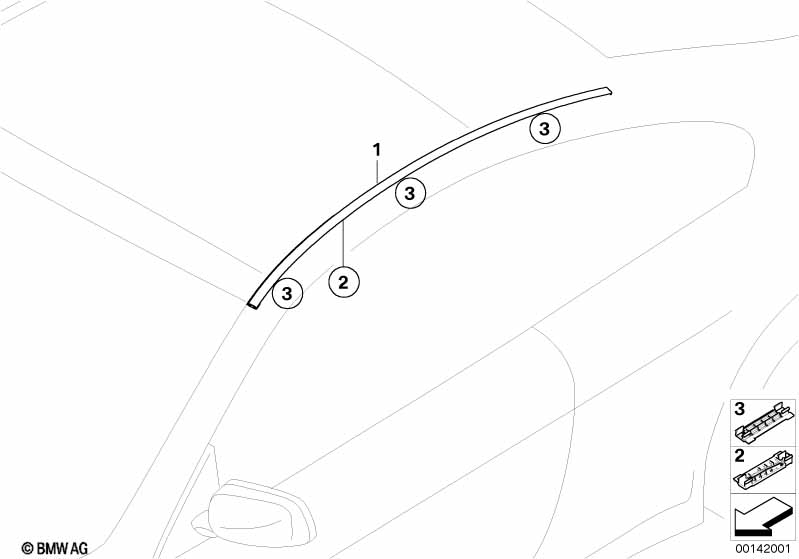

This Roof moulding/Roof rail technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | On BMW M6 strip always in black 2 | |||||||||
| For the M6 model, paintwork exclusively in the color Black 2 (paint code 668) |
||||||||||
| 01 | Roof molding prime-coated left | 1 | 51137145189 | $151.67 | Shop at ECS Tuning | |||||
| 01 | Roof molding prime-coated right | 1 | 51137145190 | $151.67 | Shop at ECS Tuning | |||||
| 02 | Clip | X | 51137072614 | $0.69 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 02 | Clip | 6 | 51137072614 | $0.69 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
