Side window, fixed position for BMW 6 Series E63 LCI 635d (2010)

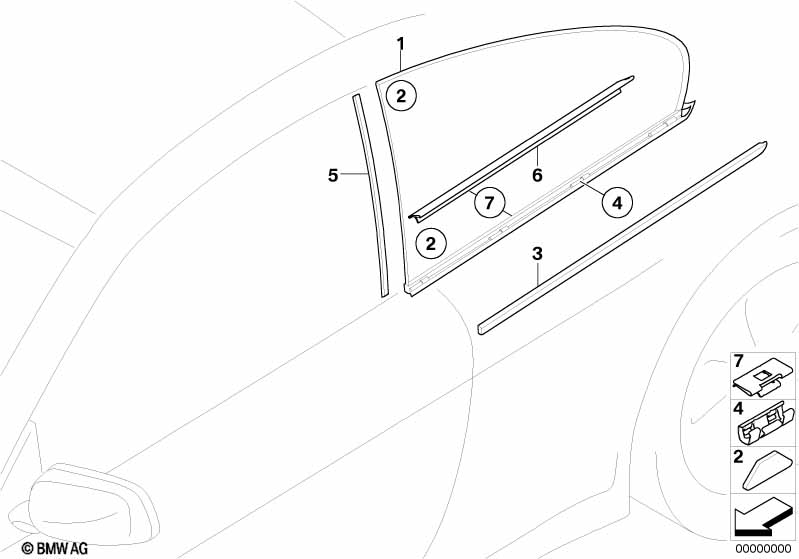

This Side window, fixed position technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side window, green fixed, rear left | 1 | 51367069221 | $129.54 | Shop at ECS Tuning | |||||
| 01 | Side window, green fixed, rear right | 1 | 51367069222 | $129.54 | Shop at ECS Tuning | |||||
| 02 | Hook&loop fastener | 8 | 51367117327 | $0.87 | Shop at ECS Tuning | |||||
| 03 | Door weather strip outer left | CHROM | 1 | 51377008575 | $76.12 | Shop at ECS Tuning | ||||
| 03 | Door weather strip outer right | CHROM | 1 | 51377008576 | $76.12 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 03 | Door weather strip outer left | GLANZSCHWARZ | 1 | 51377008577 | $78.27 | Shop at ECS Tuning | ||||
| 03 | Door weather strip outer right | GLANZSCHWARZ | 1 | 51377008578 | $78.27 | Shop at ECS Tuning | ||||
| 04 | Clamp | 8 | 51377075044 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Cover column B left | 1 | 51377050675 | $9.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover column B right | 1 | 51377050676 | $9.97 | Shop at ECS Tuning | |||||
| 06 | Edge protection, side window rear left | BASALTGRAU | 1 | 51377025577 | $33.43 | Shop at ECS Tuning | ||||
| 06 | Edge protection, side window rear right | BASALTGRAU | 1 | 51377025578 | $33.43 | Shop at ECS Tuning | ||||
| 06 | Edge protection, side window rear left | CREMEBEIGE | 1 | 51377140655 | $33.43 | Shop at ECS Tuning | ||||
| 06 | Edge protection, side window rear right | CREMEBEIGE | 1 | 51377140656 | $33.43 | ENDED | Shop at ECS Tuning | |||
| 07 | Clamp | X | 51377075043 | $0.79 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 LCI 635d Side window, fixed position?
- This technical diagram illustrates the Side window, fixed position within the Vehicle trim group for the 6 Series E63 LCI 635d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Side window, green fixed, rear left (Part #51367069221).
- Which models use the hardware listed in this Side window, fixed position?
- The hardware and components featured in the Side window, fixed position are specific to the 6 Series E63 LCI 635d produced during 2010. These technical specifications ensure that parts like the Side window, green fixed, rear left (51367069221) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side window, fixed position assembly?
- Each item in the Side window, fixed position corresponds to the numbered list below the illustration. For the 6 Series E63 LCI 635d, you can identify the Side window, green fixed, rear left by locating its position on the schematic, which then links to the official BMW part number 51367069221 for the Vehicle trim section.
