Edge protection/coverings rockers for BMW 6 Series E64 630i (2007)

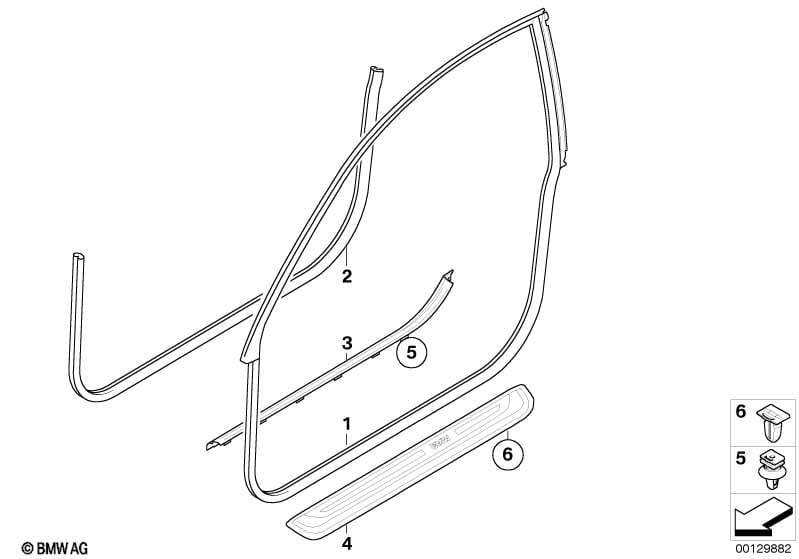

This Edge protection/coverings rockers technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Seal, door | SCHWARZ | 1 | 51767176599 | $63.54 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, left | ANTHRAZIT | 1 | 51477073885 | $21.40 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, right | ANTHRAZIT | 1 | 51477073886 | $21.40 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, left | CHATEAU | 1 | 51477073887 | $21.40 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, right | CHATEAU | 1 | 51477073888 | $21.40 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, left | CREAMBEIGE | 1 | 51477073889 | $21.40 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, right | CREAMBEIGE | 1 | 51477073890 | $21.40 | Shop at ECS Tuning | ||||
| 03 | Cover strip, entrance, interior, left | SCHILF | 1 | 51477073891 | $21.40 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover strip, entrance, interior, right | SCHILF | 1 | 51477073892 | $21.40 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover, entrance, left | SCHWARZ | 1 | 51477011075 | $52.92 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Clip, grey | L=14,85MM | 4 | 07147149477 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Cover, entrance, right | SCHWARZ | 1 | 51477011076 | $52.92 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clip, grey | L=14,85MM | 4 | 07147149477 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 04 | Cover, entrance, left | TITAN II DUNKEL | 1 | 12/2005 | 51477079959 | $157.79 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 04 | Cover, entrance, right | TITAN II DUNKEL | 1 | 12/2005 | 51477079960 | $157.79 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Clip, grey | L=14,85MM | 4 | 12/2005 | 07147149477 | $0.47 | Shop at ECS Tuning | |||
| 05 | Clip | X | 07147074343 | $0.75 | Shop at ECS Tuning | |||||
| 06 | Clip Natur | L=13,2MM | 4 | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 06 | Clip, grey | L=14,85MM | 8 | 07147149477 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
