Headlining for BMW 6 Series E63 630i (2007)

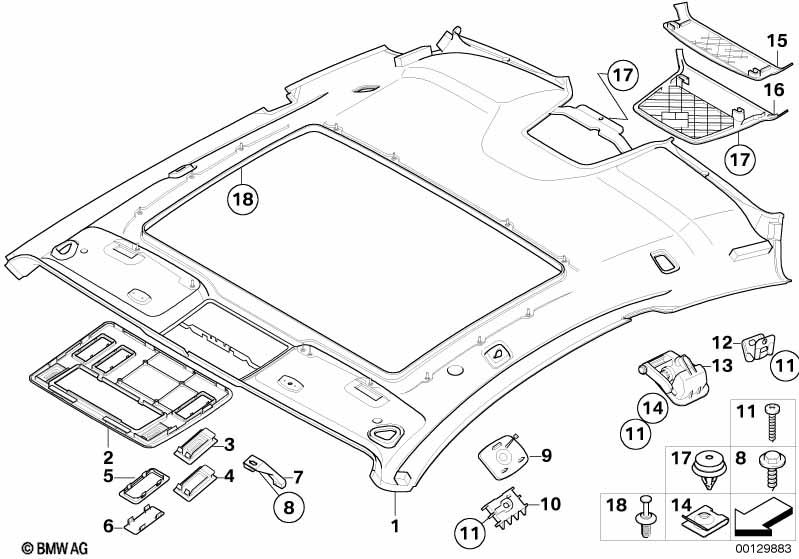

This Headlining technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molded roof lining | HIMMELGRAU | 1 | 51446953198 | +core | Shop at ECS Tuning | ||||
| 01 | Molded roof lining | CREAMBEIGE DKL. | 1 | 51446953199 | +core | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Molded headlining f sliding lifting roof | HIMMELGRAU | 1 | 51447073688 | +core | Shop at ECS Tuning | ||||
| 01 | Molded headlining f sliding lifting roof | CREAMBEIGE DKL. | 1 | 51447073689 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 01 | Molded headlining f sliding lifting roof | ANTHRAZIT | 1 | 09/2005 | 51446976703 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and Fabr./leath. "Finolino/Dakota"/anthrazit or Fabric/leather "Finolino/Dakota"/chateau or Leather "Dakota"/chateau or Leather "Dakota"/creambeige or Leather "Dakota"/schwarz or Leather "Pearl/Precision"/creambeige or Leather "Pearl/Precision"/schilf or Leather "Pearl/Precision"/schwarz |
S775A=Yes FCAT=Yes FCCH=Yes LCCH=Yes LCGE=Yes LCSW=Yes LEGE=Yes LELF=Yes LESW=Yes |
|||||||||
| 01 | Molded roof lining | ANTHRAZIT | 1 | 09/2005 | 09/2007 | 51447899009 | +core | Shop at ECS Tuning | ||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 02 | Front headlining cover | HIMMELGRAU | 1 | 51447073692 | $18.06 | Shop at ECS Tuning | ||||
| 02 | Front headlining cover | CREAMBEIGE DKL. | 1 | 51447073693 | $17.87 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino" or 100% Leather merino |
LK=Yes X3=Yes |
|||||||||
| 03 | Cover, microphone | HIMMELGRAU | 1 | 51447073700 | Shop at ECS Tuning | |||||
| 03 | Cover, microphone | CREAMBEIGE DKL. | 1 | 51447073701 | Shop at ECS Tuning | |||||
| 03 | Cover, microphone | SCHWARZ | 1 | 09/2005 | 51447905260 | $5.14 | Shop at ECS Tuning | |||
| 04 | Covering front | HIMMELGRAU | 1 | 51447144875 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering front | SCHWARZ | 2 | 51447905261 | $4.37 | Shop at ECS Tuning | ||||
| 04 | Covering front | SCHWARZ | 1 | 09/2005 | 51447905261 | $4.37 | Shop at ECS Tuning | |||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 04 | Covering front | CREAMBEIGE | 1 | 51447144876 | Shop at ECS Tuning | |||||
| 05 | Switch cover | HIMMELGRAU | 1 | 51447130929 | Shop at ECS Tuning | |||||
| 05 | Switch cover | CREAMBEIGE DKL. | 1 | 51447130930 | Shop at ECS Tuning | |||||
| 05 | Switch cover | SCHWARZ | 1 | 09/2005 | 51447899015 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 06 | Covering front | HIMMELGRAU | 1 | 51447073694 | $3.14 | Shop at ECS Tuning | ||||
| 06 | Covering front | CREAMBEIGE DKL. | 1 | 51447073695 | $3.52 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino" or 100% Leather merino |
LK=Yes X3=Yes |
|||||||||
| 06 | Covering front | SCHWARZ | 1 | 09/2005 | 51447900380 | $2.73 | Shop at ECS Tuning | |||
| 07 | Support, head lining, front | 1 | 51448224982 | $2.16 | Shop at ECS Tuning | |||||
| 08 | Sheet metal screw | ST4,8X16 | 1 | 07119901213 | $0.13 | Shop at ECS Tuning | ||||
| 09 | Front headlining cover | HIMMELGRAU | 2 | 51167073652 | $2.56 | Shop at ECS Tuning | ||||
| 09 | Front headlining cover | CREAMBEIGE DKL. | 2 | 51167073653 | $2.39 | Shop at ECS Tuning | ||||
| 09 | Trim cover, headliner, front | SCHWARZ | 2 | 09/2005 | 51167898266 | $1.91 | Shop at ECS Tuning | |||
| 10 | Carrier plate | 2 | 51167073654 | $2.68 | Shop at ECS Tuning | |||||
| 11 | Hex head screw | ST4,8X19 | 6 | 07119904183 | $0.17 | Shop at ECS Tuning | ||||
| 12 | Bracket clothing hook | 2 | 51447110247 | $5.49 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 12 | Bracket clothing hook | 2 | 51167110249 | $5.59 | Shop at ECS Tuning | |||||
| 13 | Clothes hook | GRAU | 2 | 51167261705 | Shop at ECS Tuning | |||||
| 13 | Clothes hook | CREAMBEIGE DKL | 2 | 51169150387 | $8.20 | Shop at ECS Tuning | ||||
| 13 | Clothes hook | SCHWARZ | 2 | 09/2005 | 09/2007 | 51169150380 | $13.27 | Shop at ECS Tuning | ||
| 14 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 15 | Covering headlining rear | HIMMELGRAU | 1 | 51447073686 | ENDED | Shop at ECS Tuning | ||||
| 15 | Covering headlining rear | CREAMBEIGE DKL. | 1 | 51447073687 | Shop at ECS Tuning | |||||
| 15 | Covering headlining rear | SCHWARZ | 1 | 09/2005 | 51447899012 | $29.81 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 16 | Covering headlining rear | HIMMELGRAU | 1 | 51447073696 | $29.81 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering headlining rear | CREAMBEIGE DKL. | 1 | 51447073697 | $29.81 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 16 | Covering headlining rear | SCHWARZ | 1 | 09/2005 | 51446976702 | $29.81 | +core | Shop at ECS Tuning | ||
| 17 | Clip Natur | 2 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 18 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
