Shielding, engine compartment/air ducts for BMW 6 Series E63 630i (2007)

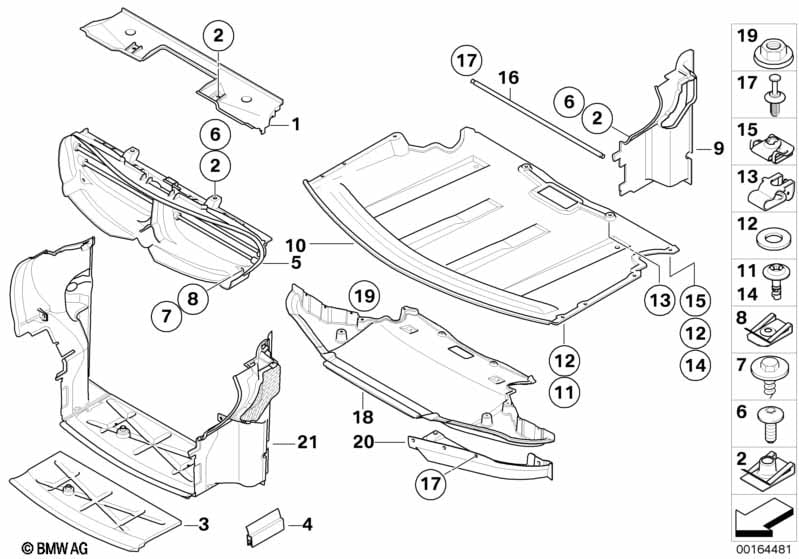

This Shielding, engine compartment/air ducts technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air duct, top | 1 | 51747052464 | $11.37 | Shop at ECS Tuning | |||||
| 02 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 03 | Air duct front bottom | 1 | 51747052473 | $11.37 | Shop at ECS Tuning | |||||
| 04 | Edge protection | 2 | 51211916700 | $1.02 | Shop at ECS Tuning | |||||
| 05 | Air flap control | 1 | 51747009714 | $116.73 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | ISA M6X18 SW | 4 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 08 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Air duct front left | 1 | 51747052469 | $11.37 | Shop at ECS Tuning | |||||
| 09 | Air duct front right | 1 | 51747052470 | $11.37 | Shop at ECS Tuning | |||||
| 10 | Engine compartment screening, front | 1 | 51757009723 | $175.45 | Shop at ECS Tuning | |||||
| 11 | Quick-release screw | 18,4MM | 10 | 51717123801 | $1.14 | Shop at ECS Tuning | ||||
| 12 | Circlip | D=12MM | 10 | 51718212163 | $0.26 | Shop at ECS Tuning | ||||
| 13 | Clip | 2 | 07147144539 | $1.40 | Shop at ECS Tuning | |||||
| 14 | Quick-release screw | 15,4MM | 2 | 51717110995 | $1.14 | Shop at ECS Tuning | ||||
| 15 | C-clip nut | 2 | 07146981767 | $1.33 | Shop at ECS Tuning |
