Shield,engine compartm./underfloor panel for BMW 6 Series E63 M6 (2010)

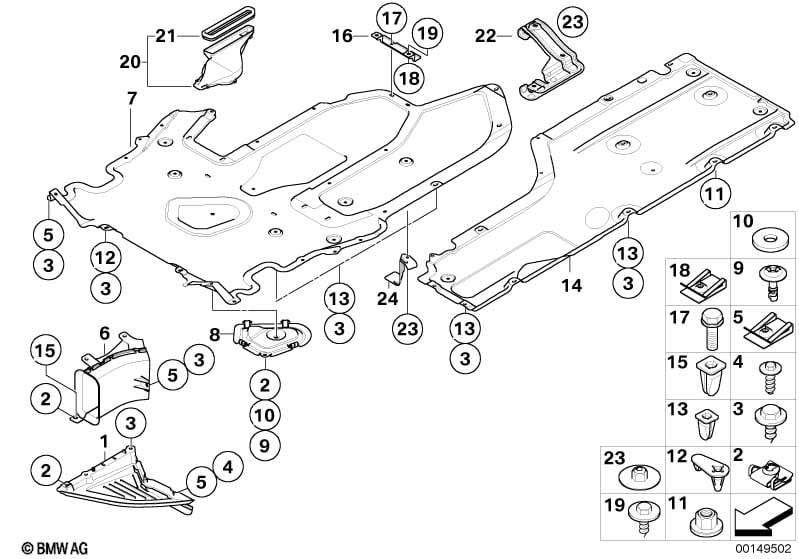

This Shield,engine compartm./underfloor panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 8 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Underfloor coating center | 1 | 51757897864 | $183.86 | Shop at ECS Tuning | |||||
| 09 | Quick-release screw | 15,4MM | 1 | 51717110995 | $1.14 | Shop at ECS Tuning | ||||
| 10 | Circlip | D=12MM | 1 | 51718212163 | $0.26 | Shop at ECS Tuning | ||||
| 11 | Plastic capnut with washer | D=18MM | 8 | 07/2010 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 11 | Plastic nut for coarse threaded pin | M6 | 8 | 07147336362 | Shop at ECS Tuning | |||||
| 12 | Expanding nut | ST 4.8 | 2 | 07147130337 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | ST4,8MM | 6 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 14 | Underbody paneling, left | 1 | 51757009725 | $91.94 | Shop at ECS Tuning | |||||
| 14 | Underside paneling, right | 1 | 51757009726 | $91.94 | Shop at ECS Tuning | |||||
| 15 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 16 | Bracket underfloor panelling,center | 1 | 51717153449 | $10.03 | Shop at ECS Tuning | |||||
| 16 | Bracket underfloor panelling,center | 1 | 51757898305 | $7.60 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M10X25-10.9ZNS3 | 2 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 18 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 19 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 20 | Air duct transmission-oil filter | 1 | 51757906479 | $60.98 | Shop at ECS Tuning | |||||
| 21 | Seal for air guidance | 1 | 51758040148 | Shop at ECS Tuning | ||||||
| 22 | Bracket underfloor panelling, left | 1 | 51717152821 | $10.69 | Shop at ECS Tuning | |||||
| 22 | Bracket underfloor panelling, right | 1 | 51717152822 | $8.76 | Shop at ECS Tuning | |||||
| 23 | Body nut | D=18MM, ZNS-3 | 4 | 07146949379 | $0.20 | Shop at ECS Tuning |
