Emblems / letterings for BMW 6 Series E63 M6 (2010)

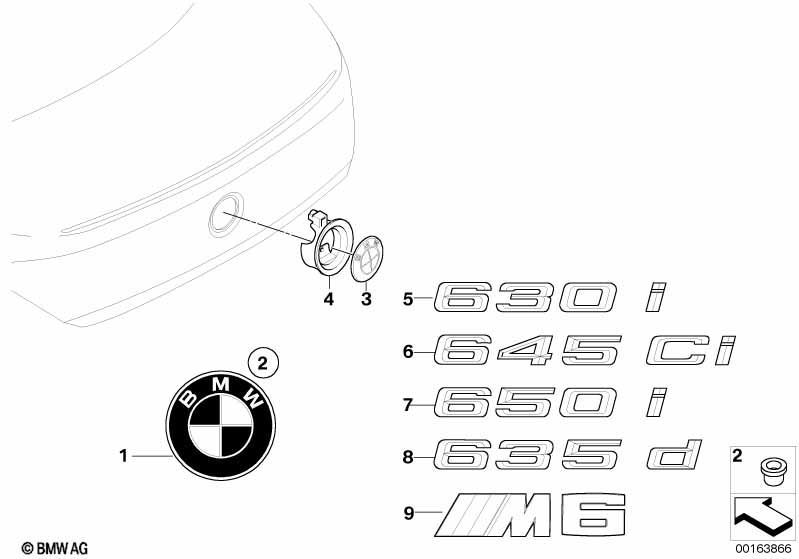

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to hood | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 03 | Badge | D=82 MM | 1 | 51147057794 | $32.02 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 51247201961 | $6.43 | Shop at ECS Tuning | |||||
| 09 | Emblem adhered | M6 | 1 | 51147898225 | $28.82 | Shop at ECS Tuning | ||||
