Various body parts for BMW 6 Series E64 LCI 635d (2010)

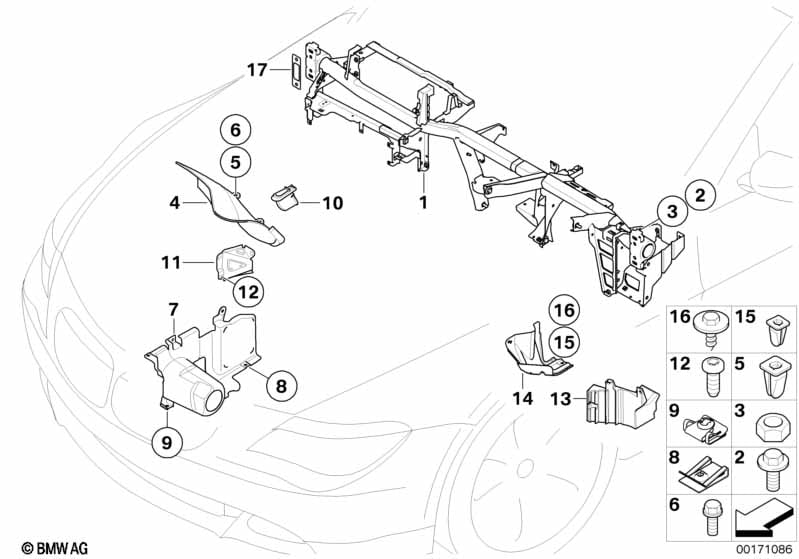

This Various body parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting tube, instrument panel | 1 | 51717120454 | $574.21 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X20MM | 4 | 51717056831 | $1.27 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 04 | Partition left | 1 | 51717050671 | $45.27 | Shop at ECS Tuning | |||||
| 04 | Partition right | 1 | 51717050672 | $45.27 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST4,8X16-ZNS3 | 8 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Left steering gear cover | 1 | 51717201517 | $35.22 | Shop at ECS Tuning | |||||
| 07 | Right steering gear cover | 1 | 51717201518 | $35.22 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=No |
|||||||||
| 07 | Left steering gear cover | 1 | 51717127251 | $35.22 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right steering gear cover | 1 | 51717127252 | $35.22 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 07 | Left steering gear cover | 1 | 51717123687 | $35.22 | ENDED | Shop at ECS Tuning | ||||
| 07 | Right steering gear cover | 1 | 51717123688 | $35.22 | Shop at ECS Tuning | |||||
| For vehicles with Active steering and Hot-climate version |
S217A=Yes S823A=Yes |
|||||||||
| 07 | Right steering gear cover | 1 | 51717201524 | Shop at ECS Tuning | ||||||
| 08 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 09 | C-clip nut | 2 | 07146981767 | $1.33 | Shop at ECS Tuning | |||||
| 10 | Water outlet valve | 1 | 51717138858 | $5.00 | Shop at ECS Tuning | |||||
| 11 | Support crash box, right | 1 | 51717114914 | $6.15 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | ISA M6X14 MK | 4 | 07147156542 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Holder wheelwell cover front left | 1 | 51717152819 | $7.12 | Shop at ECS Tuning | |||||
| 15 | Expanding nut | ST4,8MM | 2 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 16 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Compensating plate | 4 | 51717078445 | $1.13 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
