Sealing cap/plug for BMW 6 Series E64 M6 (2010)

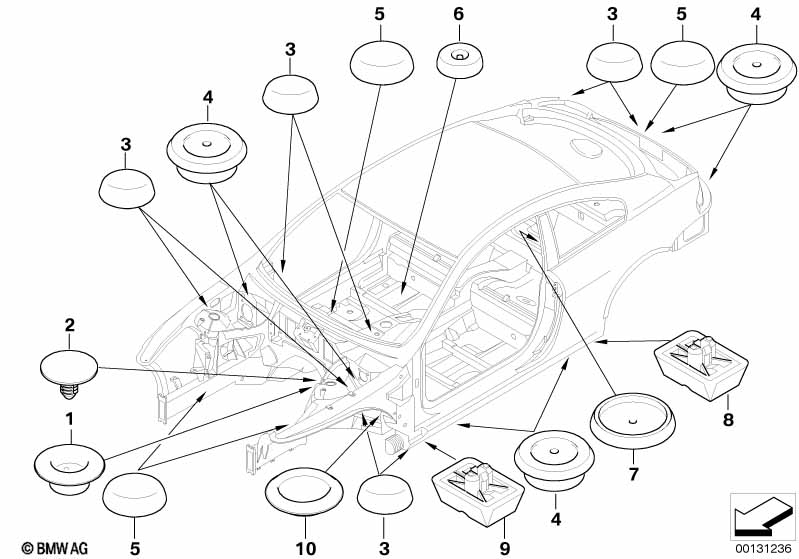

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = hole-circle diameter in the body |
|||||||||
| 01 | Blind plug | D=10MM | X | 51718226004 | $0.23 | Shop at ECS Tuning | ||||
| 02 | Plug, black | D=5MM | X | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 03 | Blind plug | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 04 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=15MM | X | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=35MM | 1 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=9.0MM | 8 | 07147133560 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Blind plug | D=25MM | X | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Support lifting platform | 2 | 51717039760 | $14.75 | Shop at ECS Tuning | |||||
| 09 | Support lifting platform | 2 | 51718268885 | $14.75 | Shop at ECS Tuning | |||||
| 10 | Blind plug | D=28MM | 1 | 51718138511 | $0.69 | Shop at ECS Tuning | ||||
