Sealing cap/plug for BMW 6 Series E63 630i (2007)

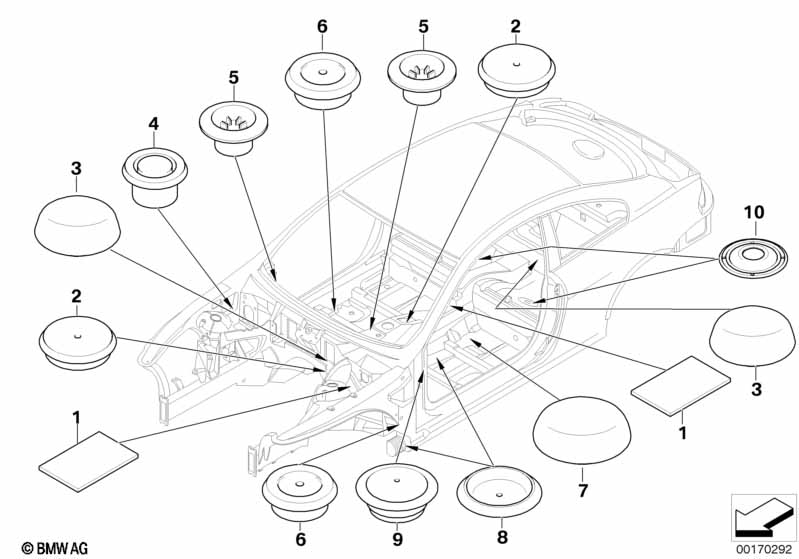

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = hole-circle diameter in the body |
|||||||||
| 01 | sealing | 25X25MM | 6 | 51718163653 | $0.32 | Shop at ECS Tuning | ||||
| 02 | Blind plug | D=35MM | 3 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 03 | Blind plug | D=12MM | X | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 04 | Blind plug | D=40MM | 2 | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=10MM | 4 | 51718226004 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 07 | Blind plug | D=15MM | X | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Blind plug | D=25MM | X | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=22MM | 1 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 10 | cover, floor panel rear | 2 | 41127128476 | $6.58 | Shop at ECS Tuning | |||||
