Mirror lens (S430A) for BMW 3 Series E90 320d (2008)

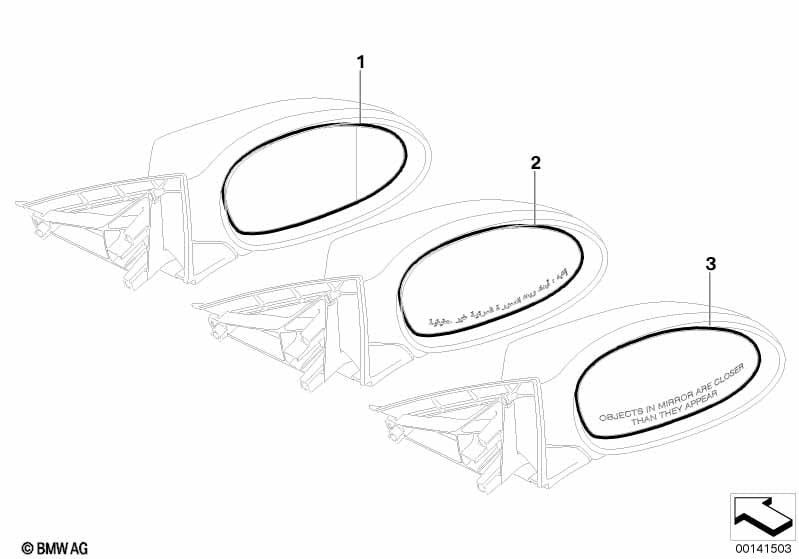

This Mirror lens (S430A) technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
||||||||
| 01 | Mirror glas, heated, wide-angle, left | 1 | 09/2008 | 51167144303 | $322.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Mirror glas, heated, wide-angle, right | 1 | 09/2008 | 51167144304 | $322.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Korea or Gulf version |
L802A=Yes L822A=Yes |
|||||||||
| 01 | Mirror glas heated plane left | 1 | 09/2008 | 51167144309 | $292.84 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Gulf version |
L822A=Yes |
|||||||||
| 02 | Mirror glas heated convex right | 1 | 09/2008 | 51167144308 | $307.34 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 03 | Mirror glas heated convex right | 1 | 09/2008 | 51167144306 | $307.34 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
