Side window, fixed position for BMW 5 Series E61 LCI 520d (2010)

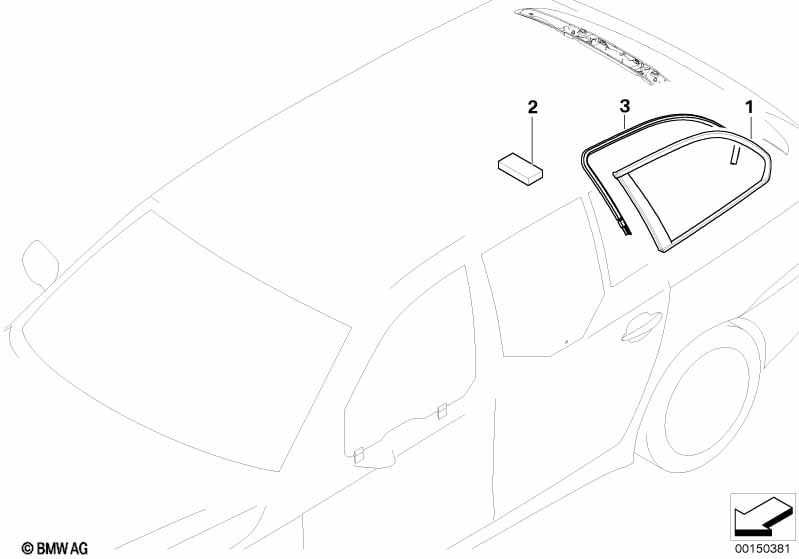

This Side window, fixed position technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green side window with left gasket | CHROM | 1 | 51377163607 | $248.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Green side window with right gasket | CHROM | 1 | 51377163608 | $248.60 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line and Climate comfort laminated glass |
S339A=Yes S356A=Yes |
|||||||||
| 01 | Green side window with left gasket | SCHWARZ | 1 | 51377163605 | $400.64 | ENDED | Shop at ECS Tuning | |||
| 01 | Green side window with right gasket | SCHWARZ | 1 | 51377163606 | $400.64 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line and Individual sunshade glazing |
S339A=Yes S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | SCHWARZ | 1 | 51377163603 | $265.61 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | SCHWARZ | 1 | 51377163604 | $265.61 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and High gloss shadow line |
P7MCA=No P7MDA=No S760A=Yes |
|||||||||
| 01 | Green side window with left gasket | GLANZSCHWARZ | 1 | 51377163613 | $248.60 | ENDED | Shop at ECS Tuning | |||
| 01 | Green side window with right gasket | GLANZSCHWARZ | 1 | 51377163614 | $248.60 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Climate comfort laminated glass |
P7MCA=No P7MDA=No S356A=Yes |
|||||||||
| 01 | Green side window with left gasket | CHROM | 1 | 51377163611 | $445.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Green side window with right gasket | CHROM | 1 | 51377163612 | $445.28 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line |
P7MCA=No P7MDA=No S339A=Yes |
|||||||||
| 01 | Green side window with left gasket | SCHWARZ | 1 | 51377163601 | $230.60 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | SCHWARZ | 1 | 51377163602 | $230.60 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Individual sunshade glazing |
P7MCA=No P7MDA=No S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | CHROM | 1 | 51377163609 | $301.32 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | CHROM | 1 | 51377163610 | $301.32 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Climate comfort laminated glass and High gloss shadow line |
P7MCA=No P7MDA=No S356A=Yes S760A=Yes |
|||||||||
| 01 | Green side window with left gasket | GLANZSCHWARZ | 1 | 51377163617 | $468.72 | ENDED | Shop at ECS Tuning | |||
| 01 | Green side window with right gasket | GLANZSCHWARZ | 1 | 51377163618 | $468.72 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Exclusive Edition and Lifestyle Edition and High gloss shadow line and Individual sunshade glazing |
P7MCA=No P7MDA=No S760A=Yes S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | GLANZSCHWARZ | 1 | 51377163615 | $301.32 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | GLANZSCHWARZ | 1 | 51377163616 | $301.32 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=Yes P7MDA=No S339A=Yes S761A=No |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216581 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216582 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=Yes P7MDA=No S339A=No S761A=No |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216581 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216582 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=No P7MDA=Yes S339A=Yes S761A=No |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216581 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216582 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=No P7MDA=Yes S339A=No S761A=No |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216581 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216582 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=Yes P7MDA=No S339A=Yes S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216583 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216584 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=Yes P7MDA=No S339A=No S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216583 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216584 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=No P7MDA=Yes S339A=Yes S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216583 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216584 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Individual sunshade glazing |
P7MCA=No P7MDA=Yes S339A=No S761A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216583 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216584 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Climate comfort laminated glass |
P7MCA=Yes P7MDA=No S339A=Yes S356A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216585 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216586 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Climate comfort laminated glass |
P7MCA=Yes P7MDA=No S339A=No S356A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216585 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216586 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Climate comfort laminated glass |
P7MCA=No P7MDA=Yes S339A=Yes S356A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216585 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216586 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Shadow-Line and Climate comfort laminated glass |
P7MCA=No P7MDA=Yes S339A=No S356A=Yes |
|||||||||
| 01 | Green side window with left gasket | 1 | 51377216585 | ENDED | Shop at ECS Tuning | |||||
| 01 | Green side window with right gasket | 1 | 51377216586 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hook&loop fastener | 25X12X5.04 | X | 51377132154 | $5.03 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Green side window with left gasket | SCHWARZ | X | 51377067101 | ENDED | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | SCHWARZ | X | 51377067102 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | CHROM | X | 51377127099 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | CHROM | X | 51377127100 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | SCHWARZ | X | 51377163605 | $400.64 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | SCHWARZ | X | 51377163606 | $400.64 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | CHROM | X | 51377163611 | $445.28 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | CHROM | X | 51377163612 | $445.28 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with left gasket | GLANZSCHWARZ | X | 51377163617 | $468.72 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | GLANZSCHWARZ | X | 51377163618 | $468.72 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with left gasket | GLANZSCHWARZ | X | 51377899391 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | GLANZSCHWARZ | X | 51377899392 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hook&loop fastener | 25X12X6,43 | X | 51377132152 | $5.98 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Green side window with left gasket | SCHWARZ | X | 51377127081 | $217.08 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | SCHWARZ | X | 51377127082 | $217.08 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Green side window with left gasket | CHROM | X | 51377127087 | $230.60 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | CHROM | X | 51377127088 | $230.60 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with left gasket | SCHWARZ | X | 51377163601 | $230.60 | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | SCHWARZ | X | 51377163602 | $230.60 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | CHROM | X | 51377163607 | $248.60 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | CHROM | X | 51377163608 | $248.60 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | GLANZSCHWARZ | X | 51377163613 | $248.60 | ENDED | Shop at ECS Tuning | |||
| -- | Green side window with right gasket | GLANZSCHWARZ | X | 51377163614 | $248.60 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | GLANZSCHWARZ | X | 51377899383 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | GLANZSCHWARZ | X | 51377899384 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hook&loop fastener | 25X12X6,01 | X | 51377125989 | $2.92 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Green side window with left gasket | SCHWARZ | X | 51377127083 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | SCHWARZ | X | 51377127084 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | CHROM | X | 51377127095 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | CHROM | X | 51377127096 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | SCHWARZ | X | 51377163603 | $265.61 | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | SCHWARZ | X | 51377163604 | $265.61 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | CHROM | X | 51377163609 | $301.32 | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | CHROM | X | 51377163610 | $301.32 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | GLANZSCHWARZ | X | 51377163615 | $301.32 | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | GLANZSCHWARZ | X | 51377163616 | $301.32 | Shop at ECS Tuning | ||||
| -- | Green side window with left gasket | GLANZSCHWARZ | X | 51377899387 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Green side window with right gasket | GLANZSCHWARZ | X | 51377899388 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Edge protection, side window rear left | 1 | 51727110581 | $41.13 | Shop at ECS Tuning | |||||
| 03 | Edge protection, side window rear right | 1 | 51727110582 | $41.13 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
