Carrier, rear for BMW 5 Series E61 535d (2007)

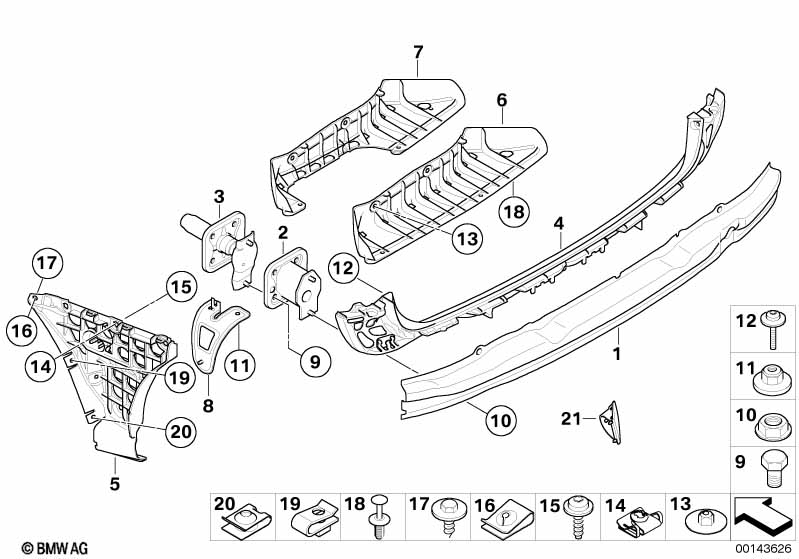

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper rear | 1 | 51127060788 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Carrier, bumper rear | 1 | 51127033712 | $308.58 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Carrier, bumper rear | 1 | 51127050405 | $339.45 | +core | Shop at ECS Tuning | ||||
| 02 | Deformation element, rear left | 1 | 51127033713 | Shop at ECS Tuning | ||||||
| 02 | Deformation element, rear right | 1 | 51127033714 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 03 | Shock absorber, rear left | 1 | 51127063433 | $93.73 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Shock absorber, rear right | 1 | 51127063434 | $95.10 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Mount, bumper, rear center | 1 | 51127060797 | $33.75 | Shop at ECS Tuning | |||||
| 05 | Mount, bumper rear left | 1 | 51127060795 | $23.25 | Shop at ECS Tuning | |||||
| 05 | Mount, bumper rear right | 1 | 51127060796 | $23.25 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 05 | Mount, bumper rear left | M | 1 | 51127897195 | $28.73 | +core | Shop at ECS Tuning | |||
| 05 | Mount, bumper rear right | M | 1 | 51127897196 | $28.73 | +core | Shop at ECS Tuning | |||
| 06 | Guide, bottom center | 1 | 51127056388 | $17.92 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 06 | Guide, bottom center | M | 1 | 51127897144 | $25.13 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 07 | Guide, bottom center | 1 | 03/2007 | 51127063431 | $17.92 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable and M Aerodynamics package |
S235A=Yes S715A=Yes |
|||||||||
| 07 | Guide, bottom center | M | 1 | 51127896619 | $25.13 | +core | Shop at ECS Tuning | |||
| 08 | Bracket, mount rear left | 1 | 51127061251 | $11.90 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 09 | Hex bolt | M10X12 | 8 | 07147117789 | $2.56 | Shop at ECS Tuning | ||||
| 10 | Hex nut | 4 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6 | 8 | 51128400432 | $0.79 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw with washer | M6 | 2 | 51127070181 | $1.47 | Shop at ECS Tuning | ||||
| 13 | Body nut | D=18MM, ZNS-3 | 3 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Body nut | ST4,8MM | 8 | 51437001566 | $0.65 | Shop at ECS Tuning | ||||
| 15 | Torx-bolt with washer | ISA ST4.8X20 | 6 | 07147075519 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Body nut | ST4.8 ZNS3 | 4 | 07146979392 | $0.24 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST 4,8X18 SW8 | 2 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Expanding rivet | 2 | 51127004445 | $0.33 | Shop at ECS Tuning | |||||
| 19 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Cover cap for bumper bracket, left | 1 | 51127121467 | $5.13 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover cap for bumper bracket, right | 1 | 51127121468 | $5.13 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
