Lateral trunk floor trim panel for BMW MINI Countryman F60 Cooper (2020)

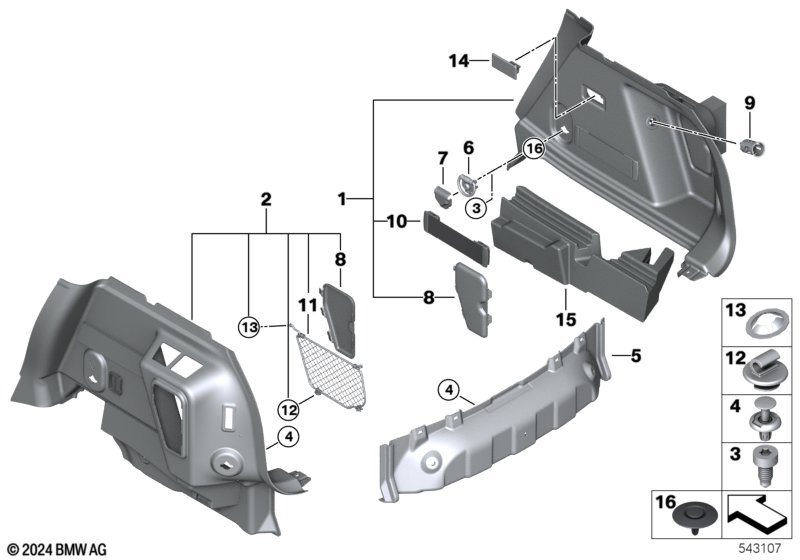

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster for rear seats |
S4FDA=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477386510 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477380676 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package |
S413A=Yes S493A=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477401336 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package and Seat adjuster for rear seats |
S493A=Yes S4FDA=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477386516 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=No S493A=No S4FDA=No |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477380668 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=Yes S493A=Yes S4FDA=No |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477401336 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=Yes S493A=Yes S4FDA=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477401338 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=No S493A=Yes S4FDA=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51479462174 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster for rear seats |
S4FDA=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477386509 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477380675 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package |
S413A=Yes S493A=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477401335 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package and Seat adjuster for rear seats |
S493A=Yes S4FDA=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477386515 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=No S493A=No S4FDA=No |
|||||||||
| 02 | Left trunk trim | 1 | 51477380667 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=Yes S493A=Yes S4FDA=No |
|||||||||
| 02 | Left trunk trim | 1 | 51477401335 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=No S493A=No S4FDA=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477386509 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=Yes S493A=Yes S4FDA=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477401337 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package and Seat adjuster for rear seats |
S413A=No S493A=Yes S4FDA=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477386515 | Shop at ECS Tuning | ||||||
| 03 | Fillister-head screw | 4 | 07147299916 | Shop at ECS Tuning | ||||||
| 04 | Expanding rivet | 7 | 07147401727 | Shop at ECS Tuning | ||||||
| 05 | Rear trunk trim panel | 1 | 51477409713 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 06 | Tie-down ring | 4 | 51477271174 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package |
S413A=Yes S493A=Yes |
|||||||||
| 06 | Tie-down ring | 6 | 51477271174 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 07 | Cover, fastening loop | 4 | 51477274764 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net and Storage compartment package |
S413A=Yes S493A=Yes |
|||||||||
| 07 | Cover, fastening loop | 6 | 51477274764 | Shop at ECS Tuning | ||||||
| 08 | Service lid, left | 1 | 51477492869 | Shop at ECS Tuning | ||||||
| 08 | Service lid, right | 1 | 51477492871 | Shop at ECS Tuning | ||||||
| 09 | Plug-in socket | 12V | 1 | 51477492877 | Shop at ECS Tuning | |||||
| 10 | Tension strap | 1 | 51477492867 | NoS | Shop at ECS Tuning | |||||
| 11 | Net with wire clamp | 1 | 51477492873 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 11 | Net with wire clamp | 1 | 51477492873 | Shop at ECS Tuning | ||||||
| 12 | Clip | 3 | 07146968215 | $1.94 | Shop at ECS Tuning | |||||
| 13 | Circlip | 2 | 51477492879 | Shop at ECS Tuning | ||||||
| 14 | Cover | 1 | 51477492865 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package If the vehicle has part number 9462167 installed, the part number 5A21CC8 must be ordered as well, due to the lashing eye opening. |
S493A=Yes |
|||||||||
| 16 | Expanding rivet | 1 | 51475A21CC8 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
