Trim cover, front for BMW MINI Cabrio R52 One

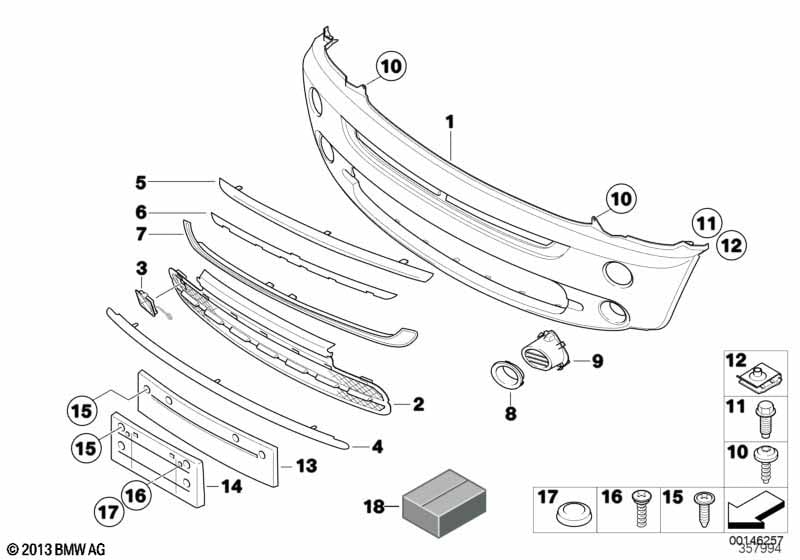

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 One. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 51117127924 | $236.52 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set, mounted parts, spoiler, front | VALUE PARTS | 1 | 51112311958 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112311959 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 01 | Painted front bumper trim | CODE-UNI/MET. | 1 | 51110308997 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set, mounted parts, spoiler, front | VALUE PARTS | 1 | 51112311958 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112311959 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117127925 | $236.52 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set, mounted parts, spoiler, front | VALUE PARTS | 1 | 51112311958 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112311959 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur When ordering indicate color code |
S346A=Yes |
|||||||||
| 01 | Painted front bumper trim | CODE-UNI/MET. | 1 | 51110308998 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set, mounted parts, spoiler, front | VALUE PARTS | 1 | 51112311958 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112311959 | Shop at ECS Tuning | |||||
| 02 | Grid, bumper front | 1 | 51117127933 | $39.63 | Shop at ECS Tuning | |||||
| 03 | Towing eye finisher | 1 | 51117127930 | $7.77 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 04 | Decorative strip | CHROM | 1 | 51117127936 | $49.28 | Shop at ECS Tuning | ||||
| 05 | Decorative strip | SCHWARZ | 1 | 51117032899 | $26.75 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 05 | Decorative strip | CHROM | 1 | 51117032900 | $41.02 | Shop at ECS Tuning | ||||
| 06 | Adhesive film, front panel | 1 | 51111490960 | $10.43 | Shop at ECS Tuning | |||||
| 07 | Centre finisher | CHROM | 1 | 51117127931 | $33.61 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 08 | Trim ring, fog lamp left | CHROM | 1 | 51117127941 | $26.23 | Shop at ECS Tuning | ||||
| 08 | Trim ring, fog lamp right | CHROM | 1 | 51117127942 | $26.23 | Shop at ECS Tuning | ||||
| For vehicles with Fog lights |
S520A=No |
|||||||||
| 09 | Cover, fog lamp right | 1 | 51711481435 | $16.85 | Shop at ECS Tuning | |||||
| 09 | Cover, fog lamp left | 1 | 51711481436 | $16.85 | Shop at ECS Tuning | |||||
| 10 | Screw | M6X25 | 2 | 07146986089 | $0.45 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | 2 | 07146986088 | $0.45 | Shop at ECS Tuning | |||||
| 12 | C-clip nut | M6 | 2 | 07131502288 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Cover, registration plate | 1 | 51117127947 | $52.85 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 14 | License plate trim black | 1 | 51117030068 | $66.45 | Shop at ECS Tuning | |||||
| 15 | Fillister head screw | L=20MM | 2 | 07131484155 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 17 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 17 | Covering cap | SCHWARZ | X | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 17 | Covering cap | DUNKELBLAU | X | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112311959 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
