Trunk lid trim panel for BMW 5 Series E61 LCI 525d (2010)

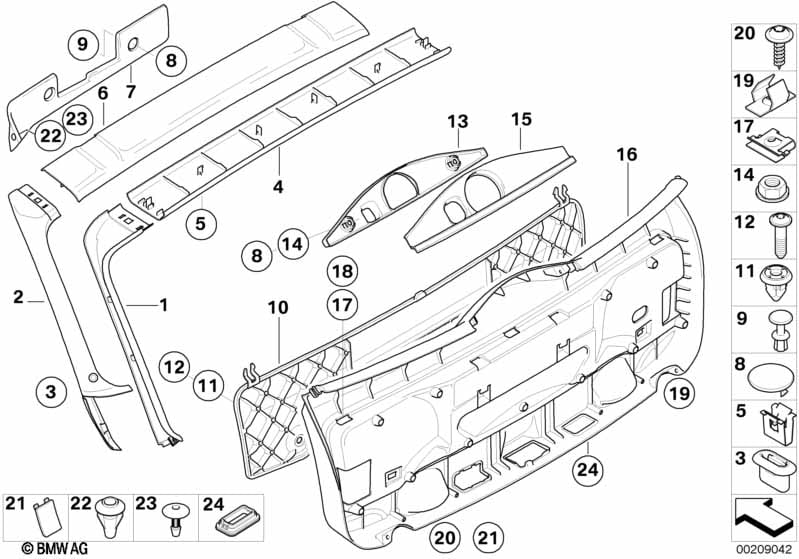

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 01 | Inter. lateral left trunk lid trim panel | BEIGE | 1 | 51497076861 | $14.23 | Shop at ECS Tuning | ||||
| 01 | Inter. lateral rght trunk lid trim panel | BEIGE | 1 | 51497076862 | $14.23 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 01 | Inter. lateral left trunk lid trim panel | CREAMBEIGE | 1 | 51497190863 | $13.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Inter. lateral rght trunk lid trim panel | CREAMBEIGE | 1 | 51497190864 | $13.98 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Inter. lateral left trunk lid trim panel | GRAU | 1 | 51497140643 | $14.23 | Shop at ECS Tuning | ||||
| 01 | Inter. lateral rght trunk lid trim panel | GRAU | 1 | 51497140646 | $14.23 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 01 | Inter. lateral left trunk lid trim panel | TRÜFFELBRAUN | 1 | 51497140645 | $14.23 | ENDED | Shop at ECS Tuning | |||
| 01 | Inter. lateral rght trunk lid trim panel | TRÜFFELBRAUN | 1 | 51497140648 | $14.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 01 | Inter. lateral left trunk lid trim panel | SCHWARZ | 1 | 51497076859 | $14.23 | Shop at ECS Tuning | ||||
| 01 | Inter. lateral rght trunk lid trim panel | SCHWARZ | 1 | 51497076860 | $14.23 | Shop at ECS Tuning | ||||
| 02 | Exter.lateral right trunk lid trim panel | SCHWARZ | 1 | 51497076864 | $17.38 | Shop at ECS Tuning | ||||
| 02 | Exter.lateral right trunk lid trim panel | SCHWARZ | 1 | 51497187278 | $18.76 | ENDED | Shop at ECS Tuning | |||
| 02 | Exter.lateral left trunk lid trim panel | SCHWARZ | 1 | 51497187277 | $18.76 | Shop at ECS Tuning | ||||
| 03 | Insert | X | 07417203297 | $0.94 | Shop at ECS Tuning | |||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 04 | Interior upper trunk lid trim panel | BEIGE | 1 | 51497077947 | $23.70 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 04 | Interior upper trunk lid trim panel | CREAMBEIGE | 1 | 51497190865 | $23.18 | ENDED | Shop at ECS Tuning | |||
| For vehicles with grey |
AD=Yes |
|||||||||
| 04 | Interior upper trunk lid trim panel | GRAU | 1 | 51497140649 | $23.70 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 04 | Interior upper trunk lid trim panel | TRÜFFELBRAUN | 1 | 51497140650 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 04 | Interior upper trunk lid trim panel | SCHWARZ | 1 | 51497077946 | $23.70 | ENDED | Shop at ECS Tuning | |||
| 05 | Clip | 6 | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 05 | Clip | 6 | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 06 | Exterior upper trunk lid trim panel | SCHWARZ | 1 | 51497061400 | $23.70 | ENDED | Shop at ECS Tuning | |||
| 07 | Left hinge cover | SCHWARZ | 1 | 51497071599 | $11.51 | ENDED | Shop at ECS Tuning | |||
| 07 | Right hinge cover | SCHWARZ | 1 | 51497071600 | $11.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 07 | Left hinge cover | SCHWARZ | 1 | 51497158699 | $11.51 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering cap | SCHWARZ | X | 51497061429 | $1.10 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | SCHWARZ | X | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 10 | Cover, rear light, trunk lid | CREAMBEIGE | 1 | 51497190866 | $101.54 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with grey |
AD=Yes |
|||||||||
| 10 | Cover, rear light, trunk lid | GRAU | 1 | 04/2005 | 51497171039 | $101.54 | +core | Shop at ECS Tuning | ||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 10 | Cover, rear light, trunk lid | TRÜFFELBRAUN | 1 | 51497140638 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 10 | Cover, rear light, trunk lid | ANTHRAZIT | 1 | 04/2005 | 51497171038 | $101.54 | ENDED | Shop at ECS Tuning | ||
| 11 | Expanding nut | 8X8 MM | X | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Torx-bolt for plastic material | TS5X15 | X | 51137057671 | $0.59 | Shop at ECS Tuning | ||||
| 13 | Upper wiper linkage cover | SCHWARZ | 1 | 51492456299 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Covering for wiper motor | SCHWARZ | 1 | 51497061427 | $11.51 | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 16 | Lower tail lid trim panel | BEIGE | 1 | 51497077945 | $121.51 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 16 | Lower tail lid trim panel | CREAMBEIGE | 1 | 51497190861 | $121.51 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 16 | Lower tail lid trim panel | GRAU | 1 | 51497140644 | $121.51 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 16 | Lower tail lid trim panel | TRÜFFELBRAUN | 1 | 51497140647 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with automatic trunk lid mechanism and grey |
S316A=Yes AD=Yes |
|||||||||
| 16 | Lower tail lid trim panel | GRAU | 1 | 51497151009 | $121.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic trunk lid mechanism and trüffel-braun |
S316A=Yes TE=Yes |
|||||||||
| 16 | Lower tail lid trim panel | TRÜFFELBRAUN | 1 | 51497151010 | $121.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic trunk lid mechanism and beige 3 |
S316A=Yes BA=Yes |
|||||||||
| 16 | Lower tail lid trim panel | BEIGE | 1 | 51497151008 | $121.51 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 16 | Lower tail lid trim panel | SCHWARZ | 1 | 51497077944 | $121.51 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic trunk lid mechanism and anthracite or amethyst or kastanienbraun or Black |
S316A=Yes AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 16 | Lower tail lid trim panel | SCHWARZ | 1 | 51497151007 | $121.51 | ENDED | Shop at ECS Tuning | |||
| 17 | Body nut | ST3.5 ZNT | 2 | 51348149251 | $0.39 | Shop at ECS Tuning | ||||
| 18 | Expanding rivet | 2 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 19 | Cage nut | X | 07147202370 | $0.25 | Shop at ECS Tuning | |||||
| 20 | Sheet metal screw | ST3,5X13 SW | X | 07/2008 | 07119904309 | $0.73 | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 21 | Cover, emergency unlocking | BEIGE | 1 | 51497169138 | $3.27 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 21 | Cover, emergency unlocking | CREAMBEIGE | 1 | 51499147541 | $3.27 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 21 | Cover, emergency unlocking | GRAU | 1 | 51497169139 | $3.27 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 21 | Cover, emergency unlocking | TRÜFFELBRAUN | 1 | 51497169140 | $2.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 21 | Cover, emergency unlocking | ANTHRAZIT | 1 | 51497169137 | $3.27 | Shop at ECS Tuning | ||||
| 22 | Clip, bottom part | 2 | 51717049175 | $0.55 | Shop at ECS Tuning | |||||
| 23 | Clip, upper part | 2 | 51717048316 | $1.45 | Shop at ECS Tuning | |||||
| 24 | Frame | 1 | 51497004896 | $4.87 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 525d Trunk lid trim panel?
- This technical diagram illustrates the Trunk lid trim panel within the Vehicle trim group for the 5 Series E61 LCI 525d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Inter. lateral left trunk lid trim panel (Part #51497076861).
- Which models use the hardware listed in this Trunk lid trim panel?
- The hardware and components featured in the Trunk lid trim panel are specific to the 5 Series E61 LCI 525d produced during 2010. These technical specifications ensure that parts like the Inter. lateral left trunk lid trim panel (51497076861) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid trim panel assembly?
- Each item in the Trunk lid trim panel corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 525d, you can identify the Inter. lateral left trunk lid trim panel by locating its position on the schematic, which then links to the official BMW part number 51497076861 for the Vehicle trim section.
