Trim panel, trunk floor for BMW 5 Series E61 530d (2005)

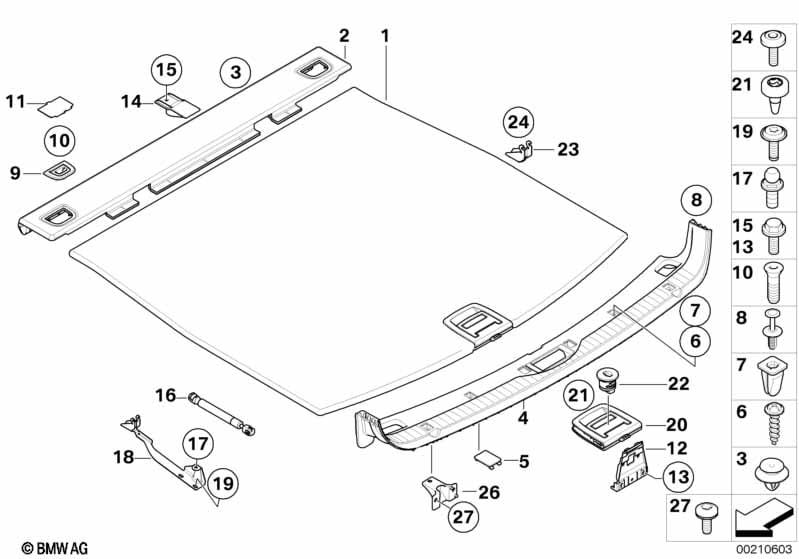

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | GRAU | 1 | 04/2005 | 51476968330 | $377.36 | ENDED | Shop at ECS Tuning | ||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | TRÜFFELBRAUN | 1 | 51477129930 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | CREAMBEIGE | 1 | 51476987028 | +core | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | BEIGE | 1 | 09/2005 | 51477076970 | $418.50 | +core | Shop at ECS Tuning | ||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | ANTHRAZIT | 1 | 04/2005 | 51476968329 | $377.36 | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 02 | Covering cross member | TRÜFFELBRAUN | 1 | 51477129145 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 02 | Covering cross member | GRAU | 1 | 04/2005 | 51476968324 | $47.84 | +core | Shop at ECS Tuning | ||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 02 | Covering cross member | CREAMBEIGE | 1 | 51476987039 | $47.84 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 02 | Covering cross member | BEIGE | 1 | 09/2005 | 51477076972 | $47.84 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 02 | Covering cross member | ANTHRAZIT | 1 | 04/2005 | 51476968323 | $47.84 | Shop at ECS Tuning | |||
| 03 | Clip, black | 1 | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 04 | Loading sill cover | CREAMBEIGE | 1 | 51476987059 | $40.70 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 04 | Loading sill cover | GRAU | 1 | 51477149563 | $40.70 | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 04 | Loading sill cover | BEIGE | 1 | 51477149562 | $40.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black or trüffel-braun |
AT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 04 | Loading sill cover | SCHWARZ | 1 | 51477149561 | $40.70 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 05 | End cover, load edge trim | GRAU | 6 | 51477152439 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 05 | End cover, load edge trim | CREAMBEIGE | 6 | 51476987045 | +core | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 05 | End cover, load edge trim | BEIGE | 6 | 51477152438 | $3.62 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black or trüffel-braun |
AT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 05 | End cover, load edge trim | SCHWARZ | 6 | 51477152437 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X16 | 4 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 09 | Tie-down ring | CHROM/TRÜFFEL. | 4 | 51477193699 | $26.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with grey |
AD=Yes |
|||||||||
| 09 | Tie-down ring | CHROM/GRAU | 4 | 51477193698 | $26.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 09 | Tie-down ring | CHROM/BEIGE | 4 | 51477193697 | $26.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 09 | Tie-down ring, chrome | SCHWARZ | 4 | 51477193695 | $23.22 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | ISA M6X16 | 8 | 54318103110 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 11 | Fastening loop cap | TRÜFFELBRAUN | 4 | 51477123686 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 11 | Fastening loop cap | GRAU | 4 | 51477112336 | $0.77 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 11 | Fastening loop cap | BEIGE | 4 | 51477110412 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or amethyst or kastanienbraun or Black |
AT=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 11 | Fastening loop cap | SCHWARZ | 4 | 51478149010 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Retainer, loading floor, lockable | 1 | 51477075913 | $6.22 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | 2 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 14 | Hood catch floor carpet | 2 | 51477066370 | $5.12 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | 2 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 16 | Gas spring, floor carpet | 2 | 51477148826 | $32.85 | Shop at ECS Tuning | |||||
| 17 | Ball pin | M6 | 2 | 51248172795 | $3.80 | Shop at ECS Tuning | ||||
| 18 | Gas pressurized spring bracket | 1 | 51477148690 | $26.49 | Shop at ECS Tuning | |||||
| 19 | Torx-bolt with washer | ISA M4X12 | X | 07147193038 | $3.62 | Shop at ECS Tuning | ||||
| 20 | Handle, floor carpet-luggage comp | ANTHRAZIT | 1 | 51476958161 | $35.29 | Shop at ECS Tuning | ||||
| 20 | Handle, floor carpet-luggage comp | GRAU | 1 | 51476958162 | $35.29 | Shop at ECS Tuning | ||||
| 20 | Handle, floor carpet-luggage comp | BEIGE | 1 | 51476958163 | $35.29 | Shop at ECS Tuning | ||||
| 20 | Handle, floor carpet-luggage comp | TRÜFFELBRAUN | 1 | 51476958164 | $35.29 | ENDED, +core | Shop at ECS Tuning | |||
| 20 | Handle, floor carpet-luggage comp | CREAMBEIGE | 1 | 51479125437 | $35.29 | Shop at ECS Tuning | ||||
| 21 | Screw | TS4X10MM | 2 | 07129907533 | Shop at ECS Tuning | |||||
| 22 | Lock | 1 | 51476968004 | $33.72 | Shop at ECS Tuning | |||||
| 23 | Hinge | 2 | 51477148691 | $17.05 | Shop at ECS Tuning | |||||
| 24 | Torx-bolt with washer | M6X12 | 2 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 25 | Hinge bracket floor carpet | 2 | 51476951091 | $20.56 | ENDED | Shop at ECS Tuning | ||||
| 26 | Retaining mount | 1 | 51476961282 | ENDED | Shop at ECS Tuning | |||||
| 27 | Torx-bolt with washer | M6X12 | 2 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
