Carrier, rear for BMW 1 Series E81 120i (2011)

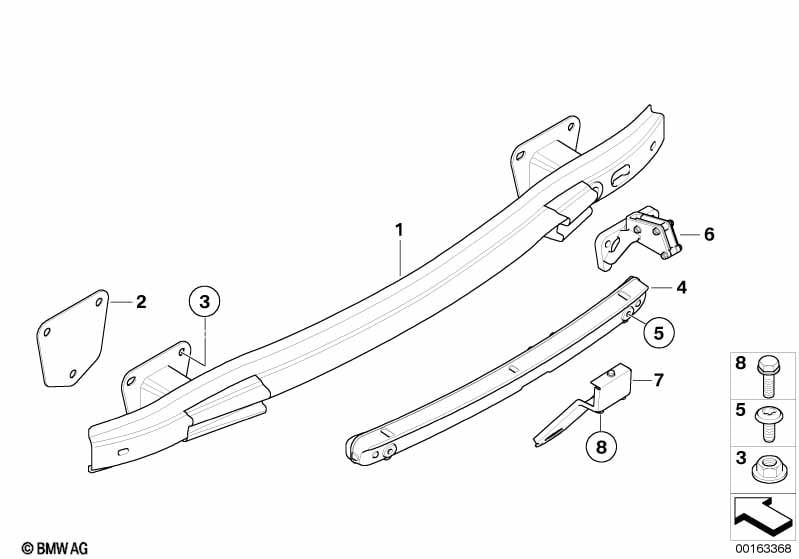

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The bumper bracket must be sealed with cavity sealant, see Repair Instructions REP-51 11 050 and REP-51 12 050. |
|||||||||
| For vehicles with Towing hitch, detachable not suitable for trailer coupling |
S235A=No |
|||||||||
| 01 | Carrier, bumper rear | 1 | 51127058465 | +core | Shop at ECS Tuning | |||||
| 02 | Washer-gasket | 2 | 51127131741 | $1.23 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M12X1,5-8-ZNS3 | 6 | 07119904578 | $0.82 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
