Roof moulding/Roof rail for BMW 5 Series E61 545i (2005)

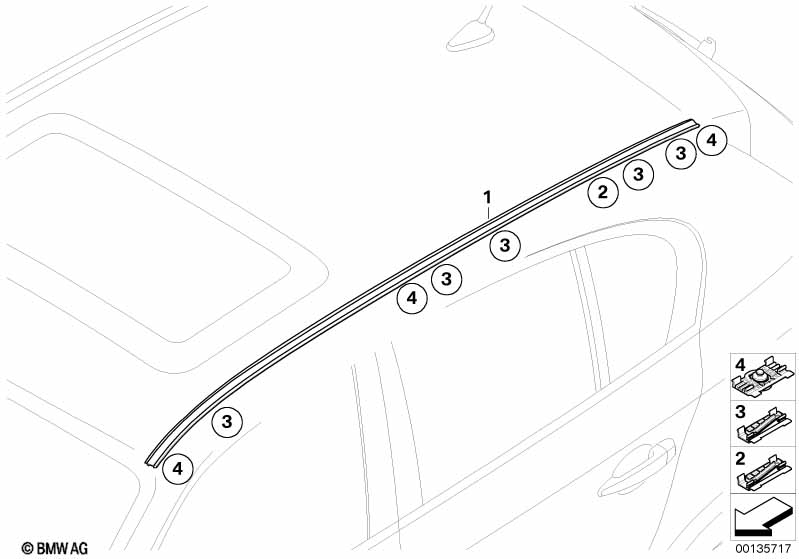

This Roof moulding/Roof rail technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 545i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof molding prime-coated left | 1 | 51137146469 | $105.15 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof molding prime-coated right | 1 | 51137146470 | $105.15 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 01 | Roof molding painted left | CODE - UNI/MET. | 1 | 51130390344 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof molding painted right | CODE - UNI/MET. | 1 | 51130390345 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clip | 2 | 51137073396 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clip | X | 51137070747 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Clip | 6 | 51137073399 | $9.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
