Exterior trim / grill for BMW 1 Series E87 LCI 118i (2009)

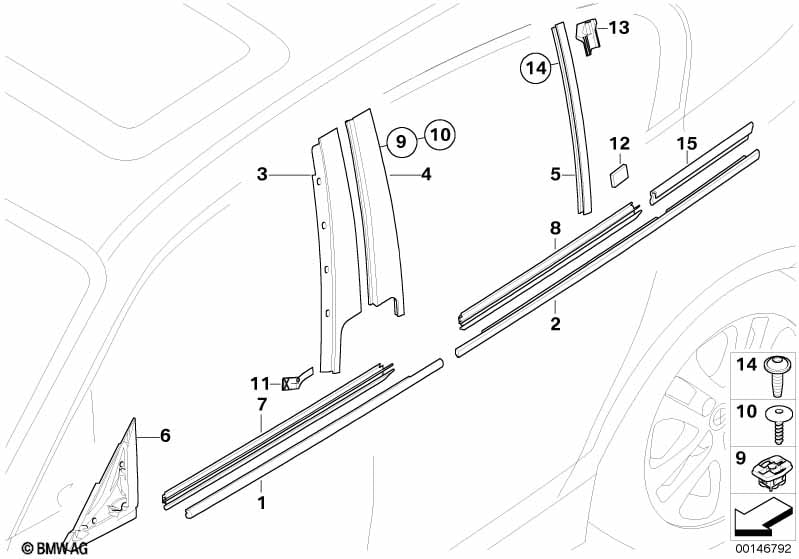

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Channel sealing,outside,door, front left | 1 | 51337066601 | $36.88 | Shop at ECS Tuning | |||||
| 01 | Channel sealing,outside,door, front rght | 1 | 51337066602 | $36.88 | Shop at ECS Tuning | |||||
| 02 | Outer weatherstrip, rear left door | 1 | 51347066607 | $20.78 | Shop at ECS Tuning | |||||
| 02 | Outer weatherstrip, rear right door | 1 | 51347066608 | $20.78 | Shop at ECS Tuning | |||||
| 03 | Finisher window frame B-pillar FL door | 1 | 51337068099 | Shop at ECS Tuning | ||||||
| 03 | Finisher window frame B-pillar FR door | 1 | 51337068100 | Shop at ECS Tuning | ||||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 03 | Finisher window frame B-pillar FL door | HOCHGLANZ | 1 | 51337154309 | Shop at ECS Tuning | |||||
| 03 | Finisher window frame B-pillar FR door | HOCHGLANZ | 1 | 51337154310 | Shop at ECS Tuning | |||||
| 04 | Cover, column B, door, rear left | 1 | 51347068101 | Shop at ECS Tuning | ||||||
| 04 | Cover, column B, door, rear right | 1 | 51347068102 | Shop at ECS Tuning | ||||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 04 | Cover, column B, door, rear left | HOCHGLANZ | 1 | 51357154311 | Shop at ECS Tuning | |||||
| 04 | Cover, column B, door, rear right | HOCHGLANZ | 1 | 51357154312 | Shop at ECS Tuning | |||||
| 05 | Window guide web cover left | 1 | 51347068129 | Shop at ECS Tuning | ||||||
| 05 | Window guide web cover right | 1 | 51347068130 | Shop at ECS Tuning | ||||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 05 | Window guide web cover left | HOCHGLANZ | 1 | 51347156451 | Shop at ECS Tuning | |||||
| 05 | Window guide web cover right | HOCHGLANZ | 1 | 51347156452 | Shop at ECS Tuning | |||||
| 06 | Seal, outer left mirror triangle | 1 | 51337129647 | Shop at ECS Tuning | ||||||
| 06 | Seal, outer right mirror triangle | 1 | 51337129648 | Shop at ECS Tuning | ||||||
| 07 | Inner left window channel cover | 1 | 51337066603 | Shop at ECS Tuning | ||||||
| 07 | Inner right window channel cover | 1 | 51337066604 | Shop at ECS Tuning | ||||||
| 08 | Inner left window channel cover | 1 | 51347066609 | Shop at ECS Tuning | ||||||
| 08 | Inner right window channel cover | 1 | 51347066610 | Shop at ECS Tuning | ||||||
| 09 | Clip | 4 | 51337140714 | Shop at ECS Tuning | ||||||
| 10 | Fillister head screw | 4 | 07147121579 | $0.38 | Shop at ECS Tuning | |||||
| 11 | Sealing, cover, column B left | 1 | 51337124151 | Shop at ECS Tuning | ||||||
| 11 | Sealing, cover, column B right | 1 | 51337124152 | Shop at ECS Tuning | ||||||
| 12 | Sealing, window guide web | 2 | 51357129087 | Shop at ECS Tuning | ||||||
| 13 | Left rear sealing | 1 | 51357124145 | Shop at ECS Tuning | ||||||
| 13 | Right rear sealing | 1 | 51357124146 | Shop at ECS Tuning | ||||||
| 14 | Fillister head screw | 3 | 07149140365 | $0.25 | Shop at ECS Tuning | |||||
| 15 | Sealing strip, left | 1 | 51357145363 | Shop at ECS Tuning | ||||||
| 15 | Sealing strip, right | 1 | 51357145364 | Shop at ECS Tuning | ||||||
