Glazing for BMW 1 Series E87 LCI 118i (2009)

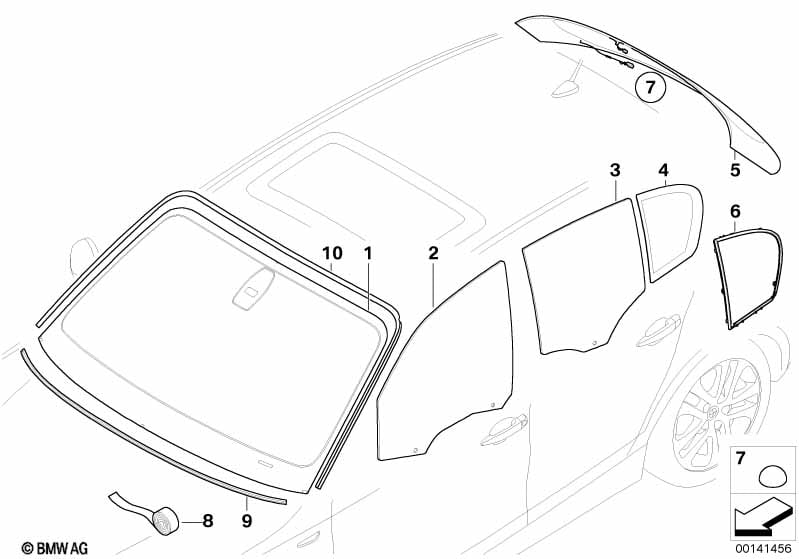

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | In the case of vehicles with S358A (air conditioning windshield), the original windshield 7165507 is no longer available for delivery; for a replacement, the normal windshield (without air conditioning) has to be installed. |
|||||||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=No S521A=No S534A=Yes |
|||||||||
| 01 | Green windshield | 1 | 51317123891 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 64116928326 | $110.27 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=Yes S521A=Yes S534A=No |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | RS | 1 | 03/2007 | 51317185976 | $384.84 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=Yes S521A=No S534A=Yes |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 03/2007 | 51317185978 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 03/2007 | 64116928326 | $110.27 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=No S521A=No S534A=Yes |
|||||||||
| 01 | Green windshield | 1 | 51317123891 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 64116928326 | $110.27 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=Yes S521A=Yes S534A=Yes |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | RS | 1 | 03/2007 | 51317185976 | $384.84 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 03/2007 | 64116928326 | $110.27 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=No S521A=No S534A=No |
|||||||||
| 01 | Green windshield | 1 | 51317123891 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=No S521A=Yes S534A=No |
|||||||||
| 01 | Green windshield, rain sensor | RS | 1 | 51317165509 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=No S521A=Yes S534A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | RS | 1 | 51317165509 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 64116928326 | $110.27 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=Yes S521A=Yes S534A=No |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | RS | 1 | 03/2007 | 51317185976 | $384.84 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=No S521A=Yes S534A=No |
|||||||||
| 01 | Green windshield, rain sensor | RS | 1 | 51317165509 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=No S521A=No S534A=No |
|||||||||
| 01 | Green windshield | 1 | 51317123891 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=Yes S521A=No S534A=No |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 03/2007 | 51317185978 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=Yes S521A=No S534A=No |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 03/2007 | 51317185978 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=Yes S521A=Yes S534A=Yes |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | RS | 1 | 03/2007 | 51317185976 | $384.84 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 03/2007 | 64116928326 | $110.27 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=Yes S3APA=Yes S521A=No S534A=Yes |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 03/2007 | 51317185978 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 03/2007 | 64116928326 | $110.27 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Cover, windshield, top | 1 | 03/2007 | 51317058224 | $30.83 | Shop at ECS Tuning | ||||
| -- | Supporting ledge | 1 | 03/2007 | 51317133291 | $15.43 | Shop at ECS Tuning | ||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 03/2007 | 51487941312 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor and Automatic air conditioning |
L8AAA=No S3APA=No S521A=Yes S534A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | RS | 1 | 51317165509 | $349.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Set, condensation sensors, bonded | 1 | 64116928326 | $110.27 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | NoS | Shop at ECS Tuning | ||||
| 02 | Door window, front left | 1 | 51337067791 | Shop at ECS Tuning | ||||||
| 02 | Door window, front right | 1 | 51337067792 | Shop at ECS Tuning | ||||||
| 03 | Door window, rear left | 1 | 51357067793 | Shop at ECS Tuning | ||||||
| 03 | Door window, rear right | 1 | 51357067794 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Door window, tinted glass, rear left | SSG | 1 | 51357136003 | Shop at ECS Tuning | |||||
| 03 | Door window, tinted glass, rear right | SSG | 1 | 51357136004 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, left | 1 | 51347070373 | Shop at ECS Tuning | ||||||
| 04 | Fixed door window, right | 1 | 51347070374 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 04 | Fixed door window, dark glass, left | SSG | 1 | 51357132961 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, dark glass, right | SSG | 1 | 51357132962 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 05 | Rear window, tinted glass | 1 | 51317115301 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Pin terminal | 1 POL. | 1 | 61131378465 | $1.62 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=No |
|||||||||
| 05 | Rear window | 1 | 51317058227 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Pin terminal | 1 POL. | 1 | 61131378465 | $1.62 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=Yes |
|||||||||
| 05 | Rear window, tinted glass | 1 | 51317115301 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Pin terminal | 1 POL. | 2 | 61131378465 | $1.62 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=No |
|||||||||
| 05 | Rear window | 1 | 51317058227 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Pin terminal | 1 POL. | 1 | 61131378465 | $1.62 | Shop at ECS Tuning | ||||
| 06 | seal, rear left side window | 1 | 51357119455 | ENDED | Shop at ECS Tuning | |||||
| 06 | seal, rear right side window | 1 | 51357119456 | Shop at ECS Tuning | ||||||
| 07 | Rubber buffer | D = 11.1 | 8 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| For vehicles with National version England / Ireland |
L812A=Yes |
|||||||||
| 08 | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| 09 | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| 10 | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118i Glazing?
- This technical diagram illustrates the Glazing within the Vehicle trim group for the 1 Series E87 LCI 118i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Green windshield (Part #51317123891).
- Which models use the hardware listed in this Glazing?
- The hardware and components featured in the Glazing are specific to the 1 Series E87 LCI 118i produced during 2009. These technical specifications ensure that parts like the Green windshield (51317123891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glazing assembly?
- Each item in the Glazing corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118i, you can identify the Green windshield by locating its position on the schematic, which then links to the official BMW part number 51317123891 for the Vehicle trim section.
