Door window lifting mechanism front for BMW 1 Series E87 120d (2007)

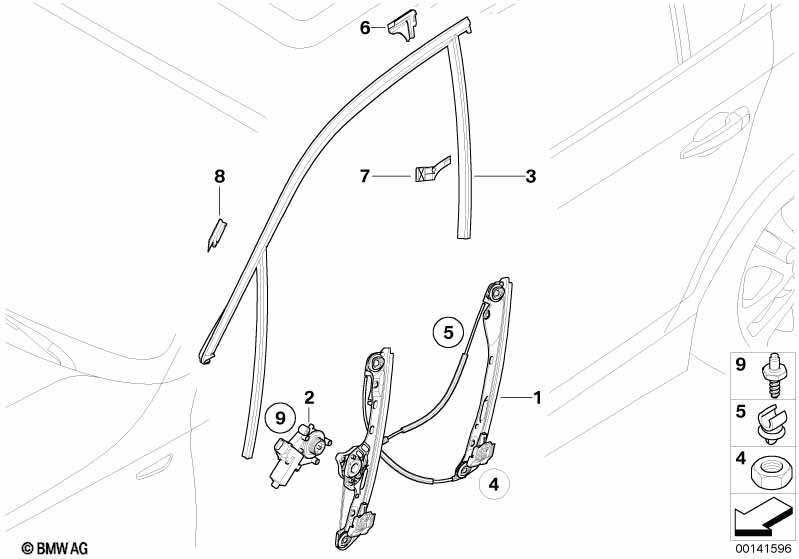

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter, electric, front left | 1 | 51337138465 | $114.13 | Shop at ECS Tuning | |||||
| 01 | Window lifter, electric, front right | 1 | 51337138466 | Shop at ECS Tuning | ||||||
| 02 | Drive for window lifter, front left | 1 | 67626927027 | $147.05 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Drive for window lifter, front right | 1 | 67626927028 | $147.05 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| -- | Universal socket housing | 6 POL. | 1 | 12527505225 | $2.53 | Shop at ECS Tuning | ||||
| 03 | Window guide, left front door | 1 | 51337066613 | Shop at ECS Tuning | ||||||
| 03 | Window guide, right front door | 1 | 51337066614 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M6 | 5 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Cable holder | 1 | 07147075057 | $1.28 | Shop at ECS Tuning | |||||
| 06 | Sealing, cover, column B left | 1 | 51337124147 | Shop at ECS Tuning | ||||||
| 06 | Sealing, cover, column B right | 1 | 51337124148 | Shop at ECS Tuning | ||||||
| 07 | Sealing, cover, column B left | 1 | 51337124151 | Shop at ECS Tuning | ||||||
| 07 | Sealing, cover, column B right | 1 | 51337124152 | Shop at ECS Tuning | ||||||
| 08 | Seal, mirror triangle, top left | 1 | 51337124149 | Shop at ECS Tuning | ||||||
| 08 | Seal, mirror triangle, top right | 1 | 51337124150 | Shop at ECS Tuning | ||||||
| 09 | Threaded bolt | 3 | 07146955339 | $1.00 | Shop at ECS Tuning | |||||
