Door window lifting mechanism rear for BMW 1 Series E87 LCI 118i (2009)

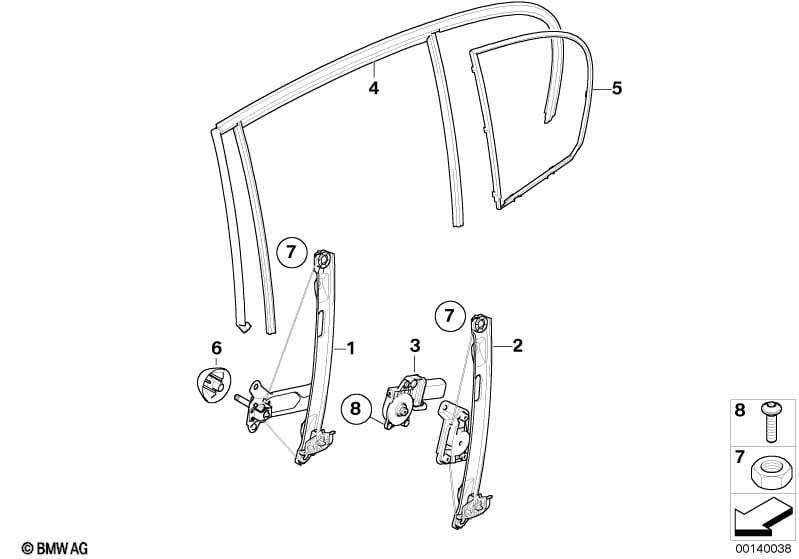

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Window lifter, electric, rear left | 1 | 51357138467 | Shop at ECS Tuning | ||||||
| 02 | Window lifter, electric, rear right | 1 | 51357138468 | Shop at ECS Tuning | ||||||
| 03 | Drive, window lifter, rear left | 1 | 67626927025 | $147.05 | Shop at ECS Tuning | |||||
| 03 | Drive, window lifter, rear right | 1 | 67626927026 | $147.05 | Shop at ECS Tuning | |||||
| 04 | Window guide, left rear door | 1 | 51347066615 | Shop at ECS Tuning | ||||||
| 04 | Window guide, right rear door | 1 | 51347066616 | Shop at ECS Tuning | ||||||
| 05 | seal, rear left side window | 1 | 51357119455 | ENDED | Shop at ECS Tuning | |||||
| 05 | seal, rear right side window | 1 | 51357119456 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M6 | 4 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | 3 | 07147208453 | $2.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
