Trim and seals for door, rear for BMW 1 Series E87 LCI 120i (2011)

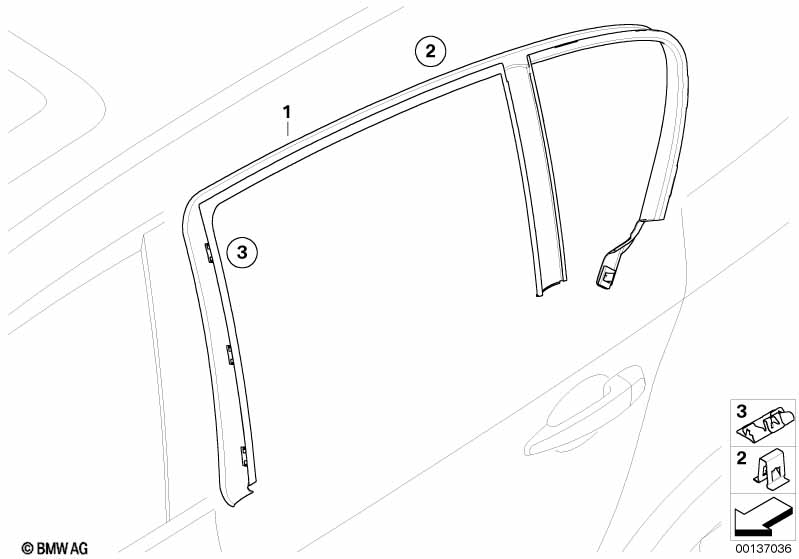

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.

Trim and seals for door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover, window frame, door rear left 1 51357121155 Shop at ECS Tuning
01 Cover, window frame, door rear right 1 51357121156 Shop at ECS Tuning
02 Plug-in retainer 1 07146957034 $0.25 Shop at ECS Tuning
Depending on equipment, the respective
window frame cover must be ordered!
03 Clamp 4 51357135518 Shop at ECS Tuning
only in conjunction with
-- Cover, window frame, door rear left 1 51357121155 Shop at ECS Tuning
-- Cover, window frame, door rear right 1 51357121156 Shop at ECS Tuning
