Outside mirror for BMW 1 Series E87 118d (2007)

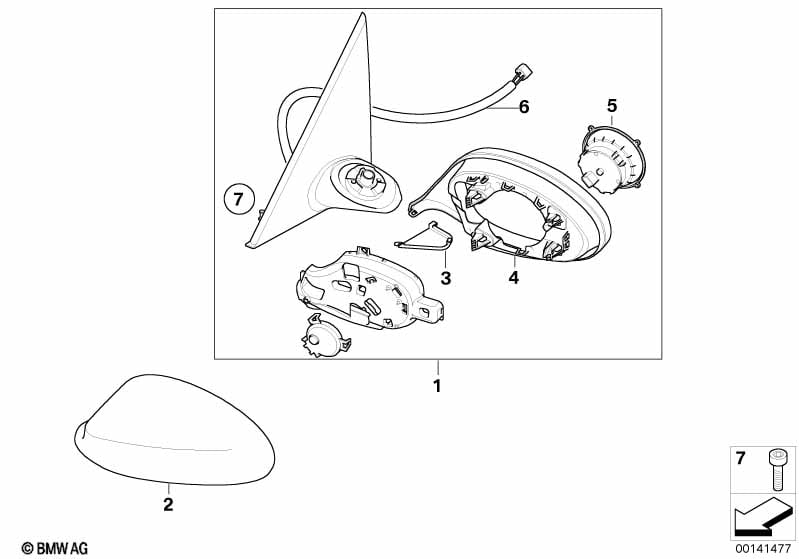

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip |
S313A=No S430A=No |
||||||||
| For vehicles with Shadow-Line |
S339A=No |
|||||||||
| 01 | heated outside mirror, left | 1 | 09/2009 | 51167189849 | $174.85 | ENDED | Shop at ECS Tuning | |||
| 01 | heated outside mirror, right | 1 | 09/2009 | 51167189850 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line Retaining ring, grain pattern |
S339A=Yes |
|||||||||
| 01 | heated outside mirror, left | SHADOWLINE | 1 | 07/2008 | 51167189893 | ENDED | Shop at ECS Tuning | |||
| 01 | heated outside mirror, right | SHADOWLINE | 1 | 07/2008 | 51167189894 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 09/2009 | 51167189857 | ENDED | Shop at ECS Tuning | ||||
| 01 | Outside mirror heated with memory,right | 1 | 09/2009 | 51167189858 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line and Seat adjuster, electric, with memory Retaining ring, grain pattern |
S339A=Yes S459A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | SHADOWLINE | 1 | 07/2008 | 51167189901 | ENDED | Shop at ECS Tuning | |||
| 01 | Outside mirror heated with memory,right | SHADOWLINE | 1 | 07/2008 | 51167189902 | Shop at ECS Tuning | ||||
| 02 | Cover cap, primed, left | 1 | 09/2009 | 51167125557 | $48.89 | Shop at ECS Tuning | ||||
| 02 | Cover cap, primed, right | 1 | 09/2009 | 51167125558 | $48.89 | Shop at ECS Tuning | ||||
| 03 | Set of covers mirror baseplate | 1 | 09/2009 | 51167157237 | $14.73 | Shop at ECS Tuning | ||||
| Retaining ring, grain pattern | ||||||||||
| 04 | Supporting ring left | 1 | 07/2008 | 51167157235 | $25.39 | Shop at ECS Tuning | ||||
| 04 | Supporting ring right | 1 | 07/2008 | 51167157236 | $25.39 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Shadow-Line and High gloss shadow line Retaining ring, grain pattern |
S339A=No S760A=No |
|||||||||
| 04 | Supporting ring left | 1 | 09/2009 | 51167157235 | $25.39 | Shop at ECS Tuning | ||||
| 04 | Supporting ring right | 1 | 09/2009 | 51167157236 | $25.39 | ENDED | Shop at ECS Tuning | |||
| 05 | Drive, outside mirror left | 1 | 09/2009 | 67137191402 | $84.48 | Shop at ECS Tuning | ||||
| 05 | Drive, outside mirror left | 1 | 09/2009 | 67135B44037 | Shop at ECS Tuning | |||||
| 05 | Drive, outside mirror right | 1 | 09/2009 | 67137191405 | $84.48 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 05 | Power, outside mirror, LIN bus | 1 | 09/2009 | 67137191398 | $163.22 | Shop at ECS Tuning | ||||
| 06 | Wiring set electr.exterior mirrors | 2 | 09/2009 | 67136940596 | $27.37 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 06 | Wiring electr.ext.mirror drivers side | 1 | 09/2009 | 67136972536 | $114.60 | Shop at ECS Tuning | ||||
| 06 | Wiring electr.ext.mirror co-driver side | 1 | 09/2009 | 67136972537 | $114.60 | Shop at ECS Tuning | ||||
| 07 | Torx screw with washer | ISA M6X17 | 3 | 09/2009 | 07146961019 | $0.47 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
