Carrier, front for BMW 5 Series E60 M5 (2006)

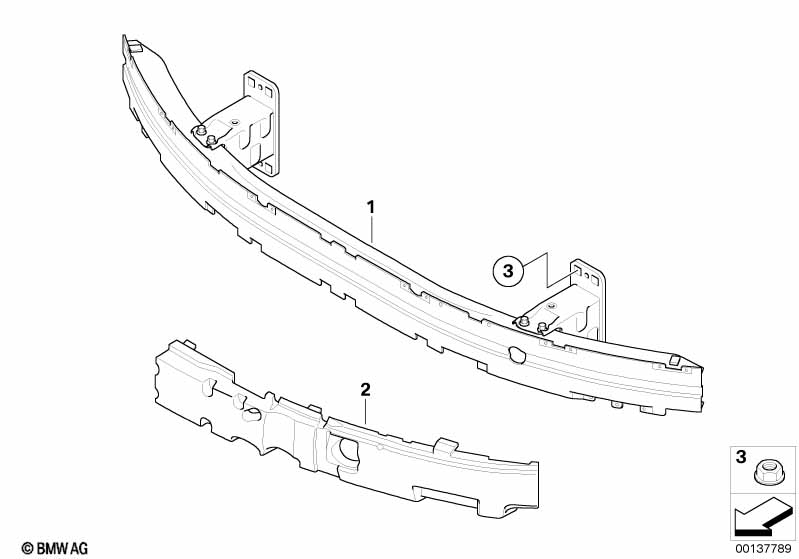

This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper front | M | 1 | 51117898116 | +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Carrier, bumper front | M | 1 | 51117895740 | $390.07 | +core | Shop at ECS Tuning | |||
| 02 | Shock absorber front left | M | 1 | 51117895741 | $32.64 | Shop at ECS Tuning | ||||
| 02 | Shock absorber front right | M | 1 | 51117895742 | $32.64 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
