M Trim, rear for BMW 5 Series E60 M5 (2006)

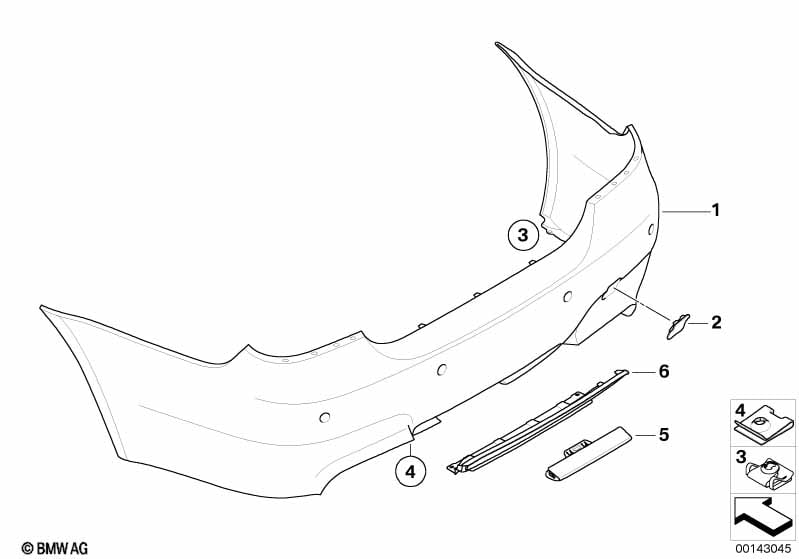

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127898113 | $742.97 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) Important notice! Observe product information. Use "Only in conjunction with" parts. |
S508A=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127898113 | $742.97 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Kit dummy trim | GEN 4.2 | 1 | 51125A3F542 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and Park Distance Control (PDC) |
S235A=Yes S508A=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127898157 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable and Park Distance Control (PDC) |
S235A=Yes S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127898158 | +core | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, primed | M | 1 | 51127898121 | $12.39 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51120394053 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,8MM | 2 | 51437001566 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 05 | Trailer hitch flap, prime-coated | M | 1 | 51127898122 | $36.23 | +core | Shop at ECS Tuning | |||
| For vehicles with Towing hitch, detachable When ordering indicate color code |
S235A=Yes |
|||||||||
| 05 | Trailer hitch flap, painted | CODE - UNI/MET. | 1 | 51120428451 | ENDED | Shop at ECS Tuning | ||||
| 06 | Reinforcement, lower center | M | 1 | 51127896846 | $25.14 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 06 | Reinforcement, lower center | M | 1 | 51127897774 | $25.14 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
