Carrier instrument panel for BMW 1 Series E87 120d (2007)

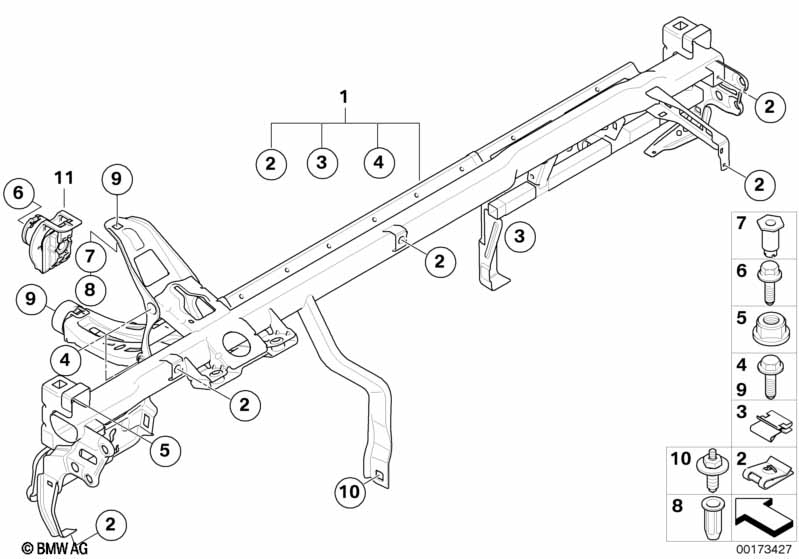

This Carrier instrument panel technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting tube | 1 | 51716952330 | ENDED | Shop at ECS Tuning | |||||
| 02 | Body nut | ST4.2 ZNS3 | 9 | 51718261093 | $0.32 | Shop at ECS Tuning | ||||
| 03 | Clamp | 1 | 07147654321 | $0.17 | Shop at ECS Tuning | |||||
| 04 | Combination Allen bolt | M8X16 | 4 | 41617068713 | $1.02 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Hexagon screw with flange | 1 | 07147135316 | $1.64 | Shop at ECS Tuning | |||||
| 07 | Compensator bush | 1 | 07147135247 | $4.36 | Shop at ECS Tuning | |||||
| 08 | Blind rivet nut, flat headed | M12X1,5 LH | 1 | 07147135246 | $4.60 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X60 | 1 | 07147135317 | $1.53 | Shop at ECS Tuning | ||||
| 10 | Spacer bolt | 1 | 07146953020 | $1.16 | Shop at ECS Tuning | |||||
| 11 | Compensation element for front wall | 1 | 51717149480 | $7.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
