Sun visors for BMW 1 Series E87 118d (2007)

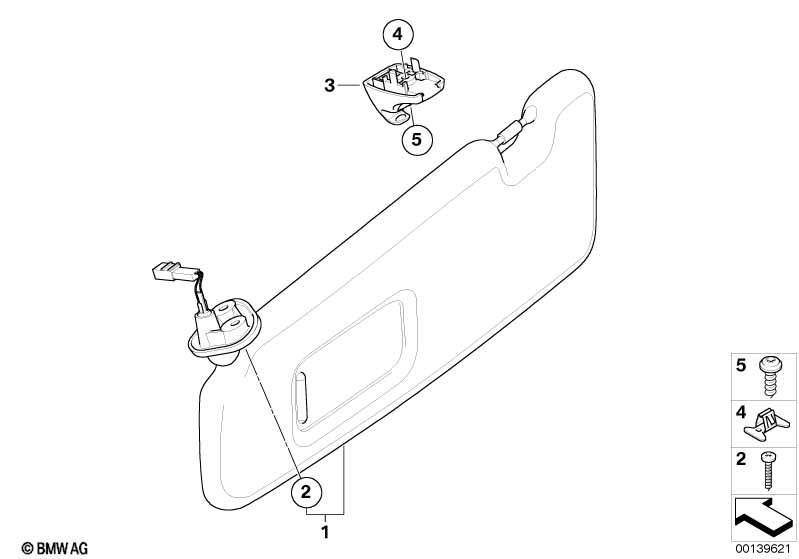

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Sun visor with mirror left | SCHWARZ | 1 | 09/2005 | 51167252503 | Shop at ECS Tuning | ||||
| 01 | Sun visor with mirror right | SCHWARZ | 1 | 09/2005 | 51167252504 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 01 | Sun visor with mirror left | BEIGE | 1 | 51167252507 | +core | Shop at ECS Tuning | ||||
| 01 | Sun visor with mirror right | BEIGE | 1 | 51167252508 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and anthracite or alaska-grey or sydney-blau or graphite or alaska-grey or Monaco blue or Black |
S775A=No AT=Yes A1=Yes A2=Yes A4=Yes A6=Yes D9=Yes SW=Yes |
|||||||||
| 01 | Sun visor with mirror left | ALASKAGRAU | 1 | 51167252505 | Shop at ECS Tuning | |||||
| 01 | Sun visor with mirror right | ALASKAGRAU | 1 | 51167252506 | Shop at ECS Tuning | |||||
| 02 | Sheet-metal screw, silver | ST4,8X19 | 2 | 07119905134 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 02 | Sheet-metal screw, black | ST4,8X19 | 2 | 09/2005 | 07119905746 | $3.73 | Shop at ECS Tuning | |||
| 03 | Counterbearing for sun visor | SCHWARZ | 2 | 09/2005 | 51167896985 | $1.83 | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 03 | Sun visor bracket | BEIGE | 2 | 51167120626 | $1.83 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and anthracite or alaska-grey or sydney-blau or graphite or alaska-grey or Monaco blue or Black |
S775A=No AT=Yes A1=Yes A2=Yes A4=Yes A6=Yes D9=Yes SW=Yes |
|||||||||
| 03 | Sun visor bracket | ALASKAGRAU | 2 | 51167120625 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Clip | 2 | 51167145718 | $1.11 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ISA ST4.2X13 | 2 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
