Inside mirror manually dippable for BMW 1 Series E87 118d (2007)

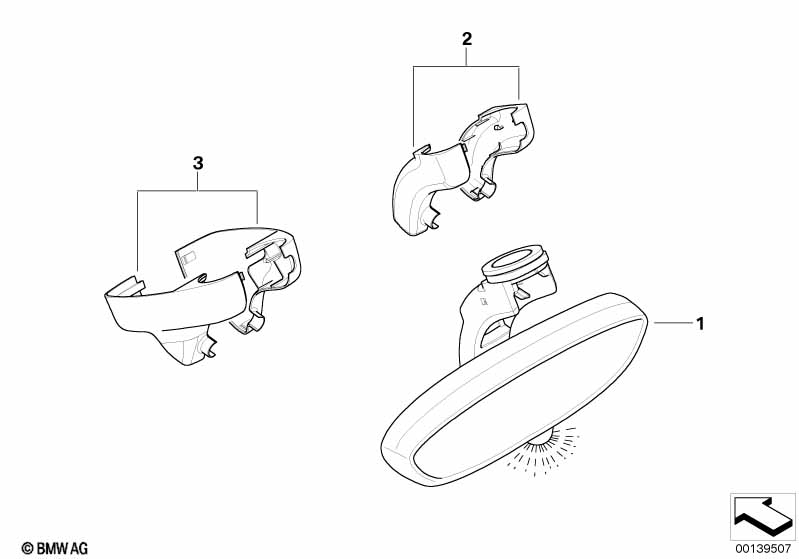

This Inside mirror manually dippable technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochromatic Radio = Radio-wave remote control LED = Light-emitting diode for alarm system GTO = Integrated remote control/garage door opener FLA = High-beam assistant Compass = Digital compass display ETC = Electronic Toll Collection TLC = Out-of-lane warning |
|||||||||
| 01 | Rearview mirror, manual / LED / Radio | 868 MHZ | 1 | 51169302875 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 434 MHz |
S874A=Yes |
|||||||||
| 01 | Rearview mirror, manual / LED / Radio | 434 MHZ | 1 | 51169134427 | $336.07 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Rearview mirror, manual / LED / Radio | 434 MHZ | 1 | 51169134427 | $336.07 | Shop at ECS Tuning | ||||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Rearview mirror, manual / LED / Radio | 315 MHZ | 1 | 51169302876 | Shop at ECS Tuning | |||||
| 02 | Set of covers mirror baseplate | 1 | 51167133655 | $13.17 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor |
S521A=Yes |
|||||||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51167076129 | $13.17 | Shop at ECS Tuning | ||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169234435 | Shop at ECS Tuning | |||||
