Headlining / Handle for BMW 1 Series E87 120d (2007)

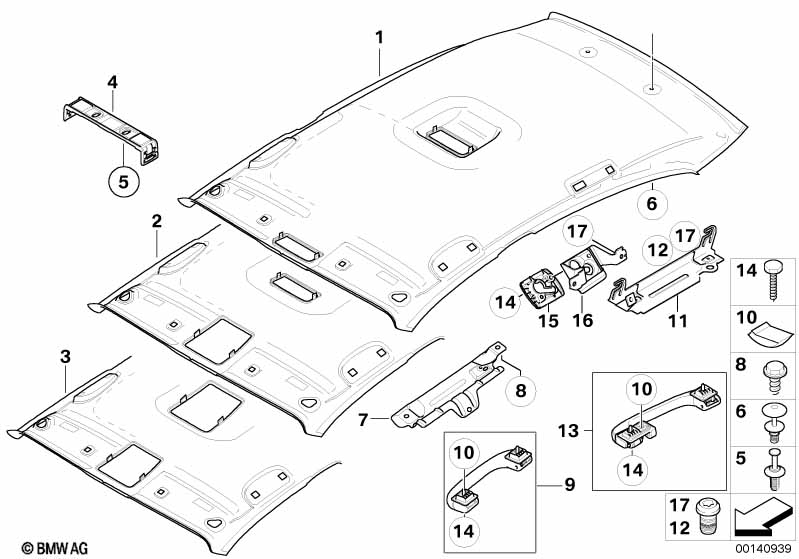

This Headlining / Handle technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Light package |
S563A=No |
||||||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Headlining | ANTHRAZIT | 1 | 09/2005 | 51448036321 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 01 | Headlining | BEIGE | 1 | 51446956000 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 01 | Headlining | ALASKAGRAU | 1 | 51446955999 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control or Interior/outside mirror with auto dip or Interior mirror with automatic-dip or Isofix-System or Rain sensor or Automatic air conditioning or Voice control or Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth and Headliner in anthrazite S775A = yes |
S319A=Yes S430A=Yes S431A=Yes S470A=Yes S521A=Yes S534A=Yes S620A=Yes S633A=Yes S640A=Yes S644A=Yes |
|||||||||
| 02 | Headlining | ANTHRAZIT | 1 | 09/2005 | 51448036322 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control or Interior/outside mirror with auto dip or Interior mirror with automatic-dip or Isofix-System or Rain sensor or Automatic air conditioning or Voice control or Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth or Headlining anthracite and sonora or beige or havanna or beige |
S319A=Yes S430A=Yes S431A=Yes S470A=Yes S521A=Yes S534A=Yes S620A=Yes S633A=Yes S640A=Yes S644A=Yes S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 02 | Headlining | BEIGE | 1 | 51446956002 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control or Interior/outside mirror with auto dip or Interior mirror with automatic-dip or Isofix-System or Rain sensor or Automatic air conditioning or Voice control or Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth or Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S319A=Yes S430A=Yes S431A=Yes S470A=Yes S521A=Yes S534A=Yes S620A=Yes S633A=Yes S640A=Yes S644A=Yes S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 02 | Headlining | ALASKAGRAU | 1 | 51446956001 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Headlining anthracite |
S302A=Yes S775A=Yes |
|||||||||
| 03 | Headlining | ANTHRAZIT | 1 | 09/2005 | 51448036323 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Alarm system and Headlining anthracite and sonora or beige or havanna or beige |
S302A=Yes S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 03 | Headlining | BEIGE | 1 | 51446956004 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S302A=Yes S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 03 | Headlining | ALASKAGRAU | 1 | 51446956003 | +core | Shop at ECS Tuning | ||||
| For vehicles with Alarm system or Integrated universal remote control or Glass roof, electrical or Interior/outside mirror with auto dip or Interior mirror with automatic-dip or Isofix-System or Rain sensor or Automatic air conditioning or Voice control or Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth |
S302A=Yes S319A=Yes S403A=Yes S430A=Yes S431A=Yes S470A=Yes S521A=Yes S534A=Yes S620A=Yes S633A=Yes S640A=Yes S644A=Yes |
|||||||||
| 04 | Bracket for roof function center | 1 | 51446953697 | Shop at ECS Tuning | ||||||
| 05 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 06 | Expanding rivet | SCHWARZ | 2 | 09/2005 | 51448036315 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 06 | Expanding rivet | BEIGE | 2 | 51446953706 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 06 | Expanding rivet | ALASKAGRAU | 2 | 51446953705 | Shop at ECS Tuning | |||||
| 07 | Bracket, front left grab handle | 1 | 51167111001 | $4.51 | Shop at ECS Tuning | |||||
| 07 | Bracket, front right grab handle | 1 | 51167111002 | $4.51 | Shop at ECS Tuning | |||||
| 08 | Sheet metal screw | ST5,5X13 SW | 6 | 07119901338 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 09 | Grab handle, front | SCHWARZ | 2 | 09/2005 | 51169143523 | $14.25 | +core | Shop at ECS Tuning | ||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 09 | Grab handle, front | BEIGE | 2 | 51169143521 | $12.45 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 09 | Grab handle, front | ALASKAGRAU | 2 | 51169143520 | $9.94 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 10 | Covering cap for grip | SCHWARZ | 8 | 09/2005 | 51167897902 | $0.62 | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 10 | Covering cap for grip | BEIGE | 8 | 51166956434 | $0.46 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 10 | Covering cap for grip | ALASKAGRAU | 8 | 51166956433 | $0.46 | Shop at ECS Tuning | ||||
| 11 | Grab handle bracket, rear left | 1 | 51167119419 | Shop at ECS Tuning | ||||||
| 11 | Grab handle bracket, rear right | 1 | 51167119420 | Shop at ECS Tuning | ||||||
| 12 | Oval-head screw with anti-rotation lock | ISA M6X40 | 2 | 52207076848 | $0.67 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 13 | Handle rear left | SCHWARZ | 1 | 09/2005 | 51167312185 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 13 | Handle rear right | SCHWARZ | 1 | 09/2005 | 51167312186 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | ST4,8X16-C-ZNS3 | 1 | 09/2005 | 07119903612 | $0.76 | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and sonora or beige or havanna or beige |
S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 13 | Handle rear left | BEIGE | 1 | 51167312183 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 13 | Handle rear right | BEIGE | 1 | 51167312184 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | ST4,8X16-C-ZNS3 | 1 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 13 | Handle rear left | ALASKAGRAU | 1 | 51167312181 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 13 | Handle rear right | ALASKAGRAU | 1 | 51167312182 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | ST4,8X16-C-ZNS3 | 1 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| 14 | Sheet metal screw | ST4,8X16-C-ZNS3 | 2 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| 14 | Sheet-metal screw, silver | ST4,8X19 | 8 | 07119905134 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Headlining anthracite |
S493A=Yes S775A=Yes |
|||||||||
| 15 | Cover f dividing net bracket left | SCHWARZ | 1 | 09/2005 | 51448036311 | Shop at ECS Tuning | ||||
| 15 | Cover f dividing net bracket right | SCHWARZ | 1 | 09/2005 | 51448036312 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Headlining anthracite and sonora or beige or havanna or beige |
S493A=Yes S775A=No A3=Yes A5=Yes BK=Yes C2=Yes |
|||||||||
| 15 | Cover f dividing net bracket left | BEIGE | 1 | 51447120739 | Shop at ECS Tuning | |||||
| 15 | Cover f dividing net bracket right | BEIGE | 1 | 51447120740 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or anthracite or Monaco blue or Black |
S493A=Yes S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AT=Yes D9=Yes SW=Yes |
|||||||||
| 15 | Cover f dividing net bracket left | ALASKAGRAU | 1 | 51447120737 | Shop at ECS Tuning | |||||
| 15 | Cover f dividing net bracket right | ALASKAGRAU | 1 | 51447120738 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 16 | Suspension loop, trunk room net left | 1 | 51477076845 | Shop at ECS Tuning | ||||||
| 16 | Suspension loop, trunk room net right | 1 | 51477076846 | Shop at ECS Tuning | ||||||
| 17 | Oval-head screw with anti-rotation lock | ISA M6X12 | 2 | 51217061955 | $0.69 | Shop at ECS Tuning | ||||
