Cover, entrance for BMW 1 Series E87 118d (2007)

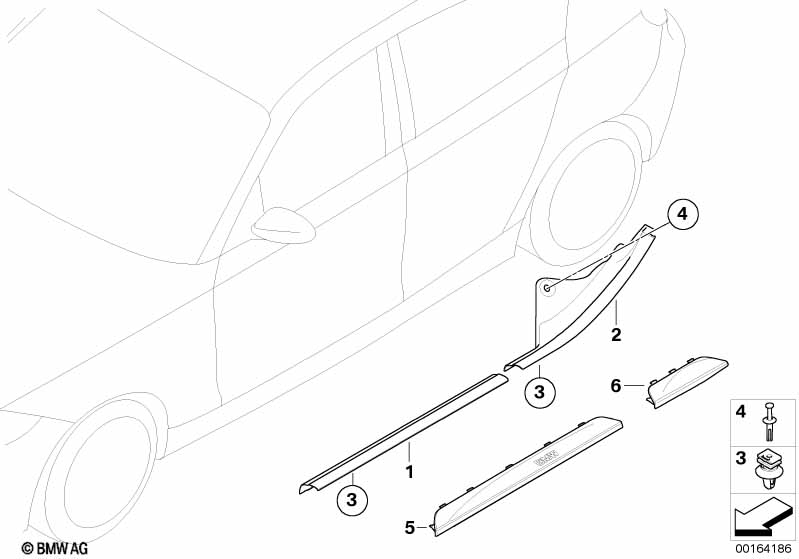

This Cover, entrance technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with alaska-grey or alaska-grey |
A1=Yes A6=Yes |
|||||||||
| 01 | Cover strip, door sill, front | ALASKAGRAU | 2 | 51477126293 | Shop at ECS Tuning | |||||
| For vehicles with beige or beige |
A5=Yes C2=Yes |
|||||||||
| 01 | Cover strip, door sill, front | BEIGE | 2 | 51477126294 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or sydney-blau or sonora or graphite or havanna or Monaco blue or Black |
AT=Yes A2=Yes A3=Yes A4=Yes BK=Yes D9=Yes SW=Yes |
|||||||||
| 01 | Cover strip, door sill, front | SCHWARZ | 2 | 51477126292 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey or alaska-grey |
A1=Yes A6=Yes |
|||||||||
| 02 | Cover strip, entrance rear left | ALASKAGRAU | 1 | 51477121165 | Shop at ECS Tuning | |||||
| 02 | Cover strip, entrance rear right | ALASKAGRAU | 1 | 51477121166 | Shop at ECS Tuning | |||||
| For vehicles with beige or beige |
A5=Yes C2=Yes |
|||||||||
| 02 | Cover strip, entrance rear left | BEIGE | 1 | 51477121167 | Shop at ECS Tuning | |||||
| 02 | Cover strip, entrance rear right | BEIGE | 1 | 51477121168 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with anthracite or sydney-blau or sonora or graphite or havanna or Monaco blue or Black |
AT=Yes A2=Yes A3=Yes A4=Yes BK=Yes D9=Yes SW=Yes |
|||||||||
| 02 | Cover strip, entrance rear left | SCHWARZ | 1 | 51477121163 | Shop at ECS Tuning | |||||
| 02 | Cover strip, entrance rear right | SCHWARZ | 1 | 51477121164 | Shop at ECS Tuning | |||||
| 03 | Clip with seal ring, beige | 14 | 51477117532 | $0.69 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | GRAU | 2 | 51118174184 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Front left entrance cover | BMW | 1 | 51717117633 | Shop at ECS Tuning | |||||
| 05 | Front right entrance cover | BMW | 1 | 51777117634 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 05 | M trim piece, front left entry | M | 1 | 51477906817 | Shop at ECS Tuning | |||||
| 05 | M trim piece, front right entry | M | 1 | 51477906818 | Shop at ECS Tuning | |||||
| 06 | Rear left entrance cover | BMW | 1 | 51777117635 | Shop at ECS Tuning | |||||
| 06 | Rear right entrance cover | BMW | 1 | 51777117636 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 06 | M trim piece, rear left entry | M | 1 | 51477906819 | Shop at ECS Tuning | |||||
| 06 | M trim piece, rear right entry | M | 1 | 51477906820 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
