M Outside mirror for BMW 5 Series E60 M5 (2006)

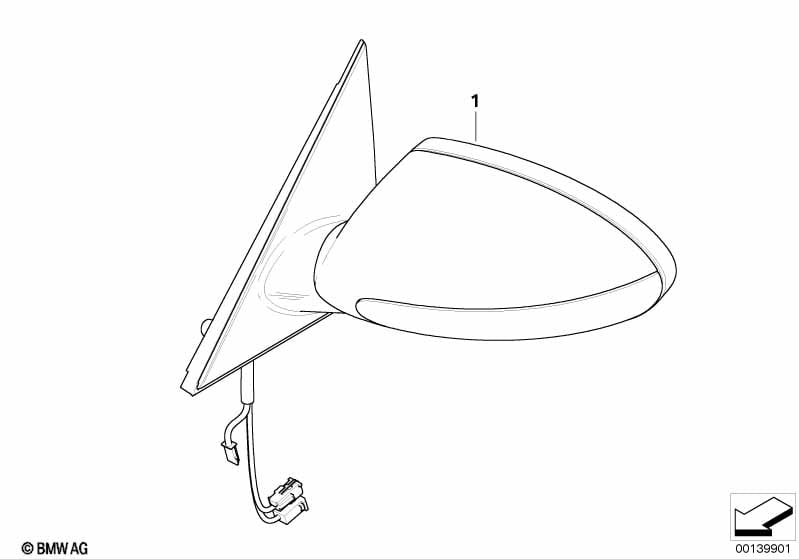

This M Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
|||||||||
| 01 | Outside mirror M w/o glass,primed,left | M | 1 | 09/2008 | 51168046363 | $573.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Outside mirror M w/o glass,primed,righ | M | 1 | 09/2008 | 51168046364 | $573.08 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 M5 M Outside mirror?
- This technical diagram illustrates the M Outside mirror within the Vehicle trim group for the 5 Series E60 M5 produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Outside mirror M w/o glass,primed,left (Part #51168046363).
- Which models use the hardware listed in this M Outside mirror?
- The hardware and components featured in the M Outside mirror are specific to the 5 Series E60 M5 produced during 2006. These technical specifications ensure that parts like the Outside mirror M w/o glass,primed,left (51168046363) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M Outside mirror assembly?
- Each item in the M Outside mirror corresponds to the numbered list below the illustration. For the 5 Series E60 M5, you can identify the Outside mirror M w/o glass,primed,left by locating its position on the schematic, which then links to the official BMW part number 51168046363 for the Vehicle trim section.
