Mirror glas, M wing mirror for BMW 5 Series E60 M5 (2006)

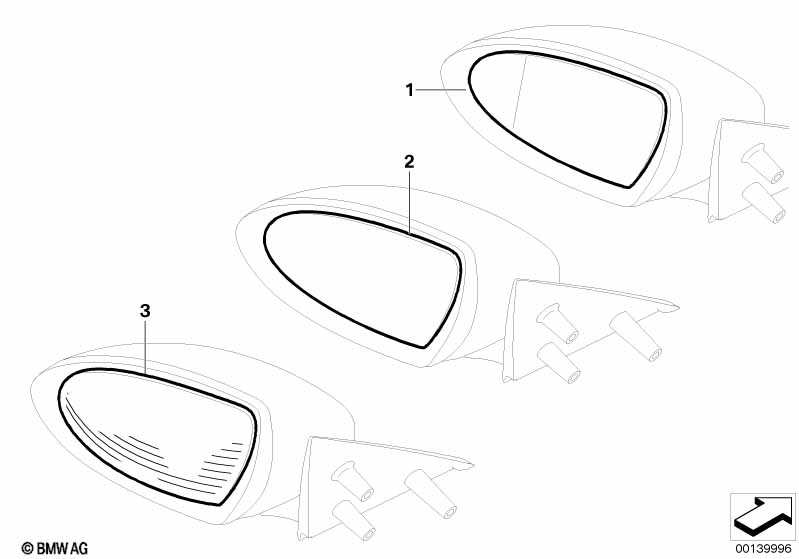

This Mirror glas, M wing mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mirror glas, heated, wide-angle, left | M | 1 | 09/2008 | 51167897547 | Shop at ECS Tuning | ||||
| 01 | Mirror glas, heated, wide-angle, right | M | 1 | 09/2008 | 51167897548 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 M5 Mirror glas, M wing mirror?
- This technical diagram illustrates the Mirror glas, M wing mirror within the Vehicle trim group for the 5 Series E60 M5 produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Mirror glas, heated, wide-angle, left (Part #51167897547).
- Which models use the hardware listed in this Mirror glas, M wing mirror?
- The hardware and components featured in the Mirror glas, M wing mirror are specific to the 5 Series E60 M5 produced during 2006. These technical specifications ensure that parts like the Mirror glas, heated, wide-angle, left (51167897547) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mirror glas, M wing mirror assembly?
- Each item in the Mirror glas, M wing mirror corresponds to the numbered list below the illustration. For the 5 Series E60 M5, you can identify the Mirror glas, heated, wide-angle, left by locating its position on the schematic, which then links to the official BMW part number 51167897547 for the Vehicle trim section.
