Mirror glas f M wing mirror - SA 430 for BMW 5 Series E60 M5 (2006)

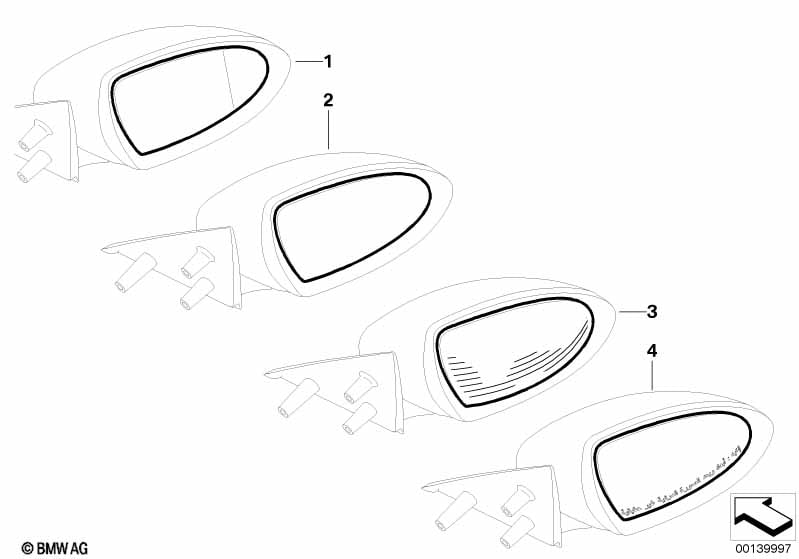

This Mirror glas f M wing mirror - SA 430 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
|||||||||
| 01 | Mirror glas, heated, wide-angle, left | M ELECTROCHROM | 1 | 09/2005 | 09/2008 | 51168040913 | Shop at ECS Tuning | |||
| 01 | Mirror glas, heated, wide-angle, right | M ELECTROCHROM | 1 | 09/2005 | 09/2008 | 51168040914 | Shop at ECS Tuning | |||
| For vehicles with Gulf version and Interior/outside mirror with auto dip |
L822A=Yes S430A=Yes |
|||||||||
| 02 | Mirror glas heated plane left | M ELECTROCHROM | 1 | 09/2005 | 09/2008 | 51168040915 | $371.12 | Shop at ECS Tuning | ||
| For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
|||||||||
| 03 | Mirror glas heated convex right | M ELECTROCHROM | 1 | 09/2005 | 09/2008 | 51168040916 | $388.54 | Shop at ECS Tuning | ||
| For vehicles with Gulf version and Interior/outside mirror with auto dip |
L822A=Yes S430A=Yes |
|||||||||
| 04 | Mirror glas heated convex right | M ELECTROCHROM | 1 | 09/2005 | 09/2008 | 51168040918 | Shop at ECS Tuning | |||
