Wheelarch trim for BMW MINI Countryman F60 Cooper

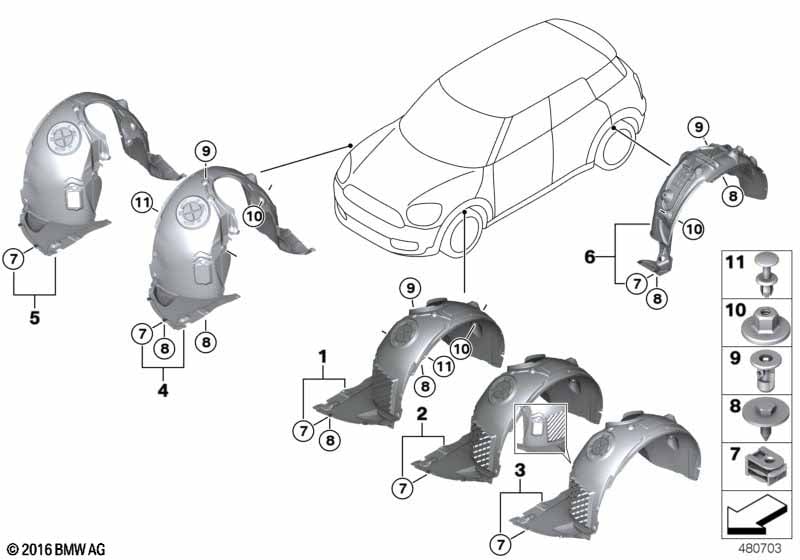

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cover, wheel housing, front left | 1 | 51717387865 | Shop at ECS Tuning | ||||||
| 04 | Cover, wheel housing, front right | 1 | 51717386956 | Shop at ECS Tuning | ||||||
| 06 | Cover, wheel housing, rear left | 1 | 51717386963 | Shop at ECS Tuning | ||||||
| 06 | Cover, wheel housing, rear right | 1 | 51717386964 | Shop at ECS Tuning | ||||||
| 07 | C-clip for plastic nut | TS5 | 10 | 07147311312 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | TS5X17 SW8 D=22 | 32 | 07149126886 | Shop at ECS Tuning | |||||
| 09 | Expanding nut | L=18.4, DMAX=18 | 16 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Plastic capnut with washer | D=22MM | 20 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | 2 | 07147136172 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper Wheelarch trim?
- This technical diagram illustrates the Wheelarch trim within the Vehicle trim group for the MINI Countryman F60 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Cover, wheel housing, front left (Part #51717387865).
- Which models use the hardware listed in this Wheelarch trim?
- The hardware and components featured in the Wheelarch trim are specific to the MINI Countryman F60 Cooper. These technical specifications ensure that parts like the Cover, wheel housing, front left (51717387865) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheelarch trim assembly?
- Each item in the Wheelarch trim corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Cover, wheel housing, front left by locating its position on the schematic, which then links to the official BMW part number 51717387865 for the Vehicle trim section.
