Center console for BMW 5 Series G30 540i (2019)

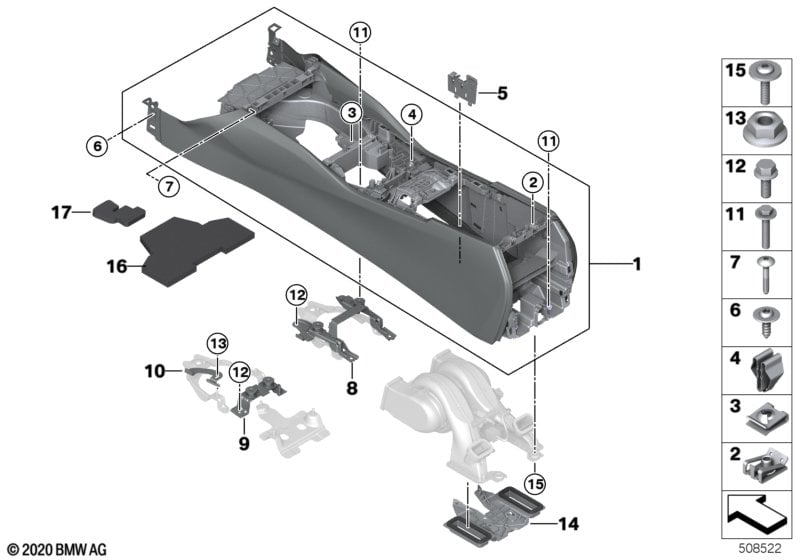

This Center console technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please observe PuMA measure AG 65319695 regarding connector plate in the center console depending on OE and production date. |
|||||||||
| For vehicles with M Sports package and Cloth/leather plectoid / anthracite |
P337A=Yes CNAT=Yes |
|||||||||
| 01 | Center console | SCHWARZ | 1 | 51166833920 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Leather Dakota/night blue/exclusive seam |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes LCTJ=Yes |
|||||||||
| 01 | Cent.console w.contrast stitch.graphite | SCHWARZ/BLAU | 1 | 51166833968 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Excl. leather Nappa/mocca/exclusive seam |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes LZNI=Yes |
|||||||||
| 01 | Cent.console w.contrast stitch.walnut | SCHWARZ/MOKKA | 1 | 51166833967 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Cloth Rhombicle Alcantara anthracite or Leather Dakota/black/contrast blue |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes HRAT=Yes LCNL=Yes |
|||||||||
| 01 | Cent.console w.contr.stitch.cornfl.blue | SCHWARZ | 1 | 51168090710 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes LCRI=Yes LCRO=Yes |
|||||||||
| 01 | Cent.console w.contrast stitch.mocha | SCHWARZ/COGNAC | 1 | 51166833966 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz or Excl.leather Nappa/black/exclusive seam |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes LCFK=Yes LCSW=Yes LZFK=Yes |
|||||||||
| 01 | Cent.console w.contrast stitch.brown | SCHWARZ | 1 | 51166833963 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige or Leather 'Dakota' canberrabeige / black |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes LCCY=Yes LCDO=Yes LCEA=Yes LCFY=Yes |
|||||||||
| 01 | Cent.console w.contrast stitch.rye | CANBERRABEIGE | 1 | 51166833964 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
P337A=Yes P7S2A=Yes S205A=Yes S2TBA=Yes S2TEA=Yes LCEW=Yes LCFF=Yes LCFI=Yes LZFF=Yes LZFI=Yes |
|||||||||
| 01 | Cent.console w.contrast stitch.dolomite | SCHWARZ/WEISS | 1 | 51166833965 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Luxury Line and Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles and Leatherette canberra-beige or Imitation leather canberra-beige or Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam or Leather Dakota Canberra beige or Leather 'Dakota' canberrabeige / black |
P337A=No P7S2A=No S205A=Yes S2TBA=Yes S2TEA=Yes K8CY=Yes K8FY=Yes LCCY=Yes LCDO=Yes LCEA=Yes LCFY=Yes |
|||||||||
| 01 | Center console | CANBERRABEIGE | 1 | 51166833938 | Shop at ECS Tuning | |||||
| 02 | C-clip sheet metal nut | 17 | 07149319414 | Shop at ECS Tuning | ||||||
| 03 | C-clip nut | 3 | 07146808565 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
|||||||||
| 04 | Clamp | 2 | 07147321144 | Shop at ECS Tuning | ||||||
| 05 | Plug socket holder, center console | 1 | 07/2019 | 51169382728 | Shop at ECS Tuning | |||||
| 06 | Oval-head screw with washer | DELTA PT4X12 | 3 | 07149200941 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | 2 | 07149156656 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
|||||||||
| 08 | Bracket f center console, center | 1 | 51169349042 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt | M6X35 | 5 | 07119905188 | $2.11 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=Yes S2TBA=Yes S2TEA=Yes |
|||||||||
| 12 | Hex bolt | M6X16 | 4 | 07119907474 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 14 | Adapter plate for air duct | 1 | 51169302628 | Shop at ECS Tuning | ||||||
| 15 | Oval-head machine screw, self-locking | M5 | 4 | 07149362248 | Shop at ECS Tuning | |||||
| 16 | Sound insulation, center console | 1 | 51166818952 | NoS | Shop at ECS Tuning | |||||
| 17 | Sound insulation center console left | 1 | 51166823585 | NoS | Shop at ECS Tuning | |||||
| 17 | Sound insulation center console right | 1 | 51166823586 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
