Mount, center console for BMW 7 Series E65 760i (2008)

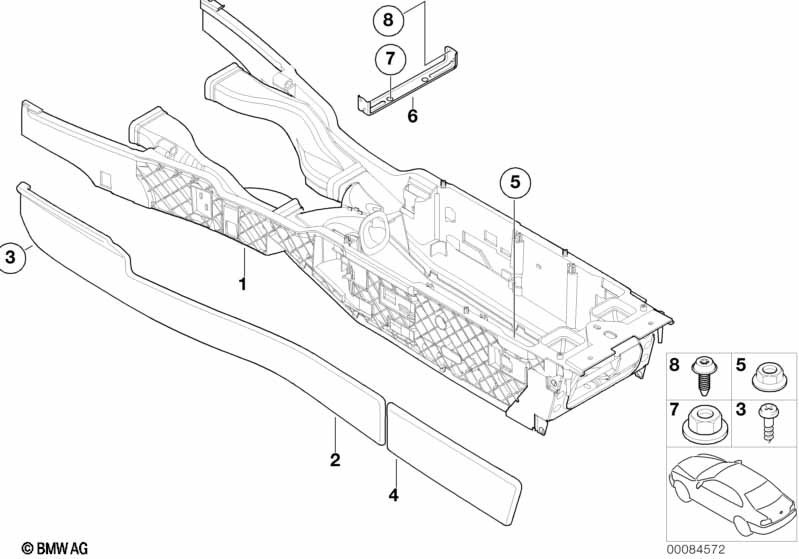

This Mount, center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting part, center console | SCHWARZ | 1 | 03/2005 | 51168223326 | $161.97 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Rear display screen |
S603A=Yes |
|||||||||
| 01 | Supporting part, center console | SCHWARZ | 1 | 03/2005 | 51167065988 | $161.97 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Trim panel center console left front | ANTHRAZIT | 1 | 03/2005 | 51167007183 | $52.22 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Trim panel center console right front | ANTHRAZIT | 1 | 03/2005 | 51167007184 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Trim panel center console left front | NATURBRAUN | 1 | 03/2005 | 51167007187 | $58.03 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Trim panel center console right front | NATURBRAUN | 1 | 03/2005 | 51167007188 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Trim panel center console left front | BEIGE | 1 | 03/2005 | 51167011045 | $52.22 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Trim panel center console right front | BEIGE | 1 | 03/2005 | 51167011046 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Trim panel center console left front | FLANELLGRAU | 1 | 03/2005 | 51167011047 | $52.22 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Trim panel center console right front | FLANELLGRAU | 1 | 03/2005 | 51167011048 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 03/2005 | 07119904176 | $0.25 | Shop at ECS Tuning | |||
| 04 | Trim panel, center console, rear left | ANTHRAZIT | 1 | 03/2005 | 51167007185 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear right | ANTHRAZIT | 1 | 03/2005 | 51167007186 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear left | NATURBRAUN | 1 | 03/2005 | 51167007189 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear right | NATURBRAUN | 1 | 03/2005 | 51167007190 | $28.74 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear left | BEIGE | 1 | 03/2005 | 51167011049 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear right | BEIGE | 1 | 03/2005 | 51167011050 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear left | FLANELLGRAU | 1 | 03/2005 | 51167011051 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Trim panel, center console, rear right | FLANELLGRAU | 1 | 03/2005 | 51167011052 | $31.43 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Self-locking hex nut | M6 | 2 | 03/2005 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 06 | Bracket, center console | 1 | 03/2005 | 51168241246 | $4.27 | ENDED | Shop at ECS Tuning | |||
| 07 | Self-locking hex nut | M6 | 2 | 03/2005 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 08 | Fillister head screw | 4 | 03/2005 | 07149140365 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
