Reinforcement for body, front for BMW 6 Series G32 GT 630dX (2020)

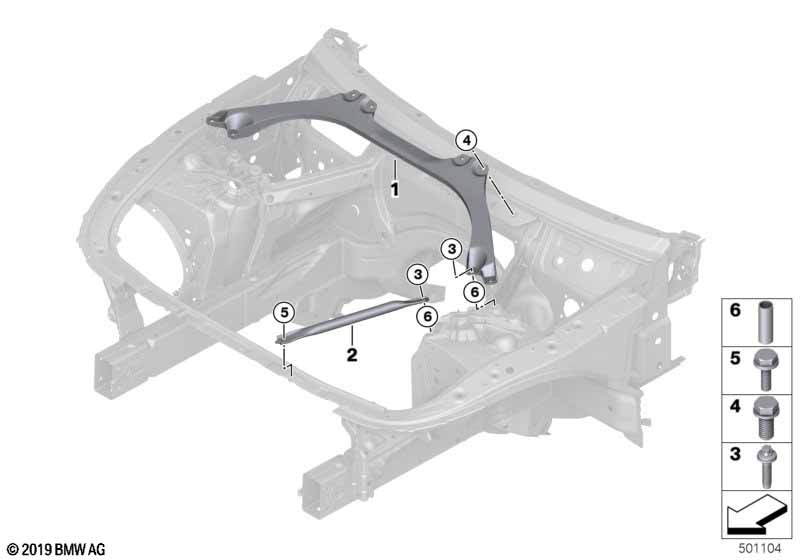

This Reinforcement for body, front technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Strut brace, bulkhead | 1 | 51617390311 | Shop at ECS Tuning | ||||||
| 02 | Strut tower brace, left | 1 | 51617377837 | Shop at ECS Tuning | ||||||
| 02 | Strut tower brace, right | 1 | 51617377838 | Shop at ECS Tuning | ||||||
| 03 | Countersunk head screw with washer | M10X45 | 6 | 51716966566 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M10X25-10.9ZNS3 | 4 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X30 10.9 ZNS3 | 2 | 07119907857 | Shop at ECS Tuning | |||||
| 06 | Threaded plug | M10X30 | 6 | 07129909659 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630dX Reinforcement for body, front?
- This technical diagram illustrates the Reinforcement for body, front within the Vehicle trim group for the 6 Series G32 GT 630dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Strut brace, bulkhead (Part #51617390311).
- Which models use the hardware listed in this Reinforcement for body, front?
- The hardware and components featured in the Reinforcement for body, front are specific to the 6 Series G32 GT 630dX produced during 2020. These technical specifications ensure that parts like the Strut brace, bulkhead (51617390311) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reinforcement for body, front assembly?
- Each item in the Reinforcement for body, front corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630dX, you can identify the Strut brace, bulkhead by locating its position on the schematic, which then links to the official BMW part number 51617390311 for the Vehicle trim section.
