Glazing for BMW 3 Series E90 320d (2008)

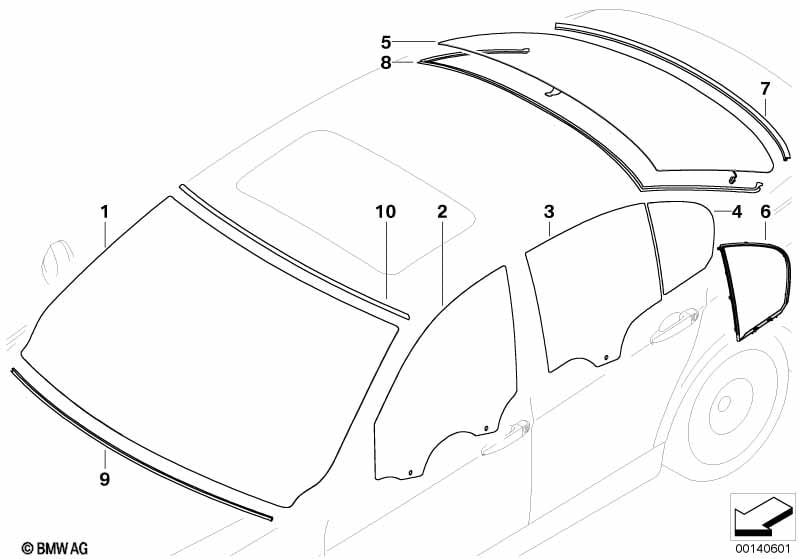

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The 'condensation sensor, bonded' kit should also be ordered on vehicles with S534A automatic climate control, see TIU 64_1438. |
|||||||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Windshield with grey wedge and Rain sensor |
L8AAA=Yes S354A=No S358A=No S3APA=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51317138629 | $373.22 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| -- | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| -- | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Windshield with grey wedge and Rain sensor |
L8AAA=Yes S354A=No S358A=Yes S3APA=No S521A=Yes |
|||||||||
| 01 | Windshield infrared rain sensor | 1 | 51317203857 | $578.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| -- | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| -- | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Windshield with grey wedge and Rain sensor |
L8AAA=No S354A=No S358A=No S3APA=No S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 51317164816 | $410.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| -- | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| -- | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Windshield with grey wedge and Rain sensor |
L8AAA=No S354A=Yes S358A=No S3APA=Yes S521A=Yes |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | 1 | 51317186790 | $450.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| -- | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| -- | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Windshield with grey wedge and Rain sensor |
L8AAA=Yes S354A=Yes S358A=No S3APA=Yes S521A=No |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 51317186793 | $410.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| -- | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| -- | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| 02 | Door window, front left | 1 | 51337060263 | $117.00 | Shop at ECS Tuning | |||||
| 02 | Door window, front right | 1 | 51337060264 | $117.00 | Shop at ECS Tuning | |||||
| 03 | Door window, rear left | 1 | 51347060267 | $90.41 | Shop at ECS Tuning | |||||
| 03 | Door window, rear right | 1 | 51347060268 | $90.41 | Shop at ECS Tuning | |||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 03 | Door window, tinted glass, rear left | 1 | 51357145263 | $90.41 | Shop at ECS Tuning | |||||
| 03 | Door window, tinted glass, rear right | 1 | 51357145264 | $90.41 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, left | 1 | 51347060211 | $44.03 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, right | 1 | 51347060212 | $44.03 | Shop at ECS Tuning | |||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 04 | Fixed door window, dark glass, left | 1 | 51357130361 | $56.32 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, dark glass, right | 1 | 51357130362 | $56.32 | Shop at ECS Tuning | |||||
| 05 | Rear window green | 1 | 51317138639 | $355.34 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Windshield adhesive kit | 1 | 83192289180 | Shop at ECS Tuning | ||||||
| -- | Cover, rear window, top | 1 | 51317061970 | $32.57 | +core | Shop at ECS Tuning | ||||
| -- | Rear window cover, bottom | 1 | 51317138664 | $22.83 | +core | Shop at ECS Tuning | ||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 05 | Rear window, tinted glass | 1 | 51317138640 | $463.72 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Windshield adhesive kit | 1 | 83192289180 | Shop at ECS Tuning | ||||||
| -- | Cover, rear window, top | 1 | 51317061970 | $32.57 | +core | Shop at ECS Tuning | ||||
| -- | Rear window cover, bottom | 1 | 51317138664 | $22.83 | +core | Shop at ECS Tuning | ||||
| 06 | seal, rear left side window | 1 | 51347060219 | $13.33 | Shop at ECS Tuning | |||||
| 06 | seal, rear right side window | 1 | 51347060220 | $13.33 | Shop at ECS Tuning | |||||
| 07 | Rear window cover, bottom | 1 | 51317138664 | $22.83 | +core | Shop at ECS Tuning | ||||
| 08 | Cover, rear window, top | 1 | 51317061970 | $32.57 | +core | Shop at ECS Tuning | ||||
| 09 | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| 10 | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
