Glazing for BMW 3 Series E46 330i (2004)

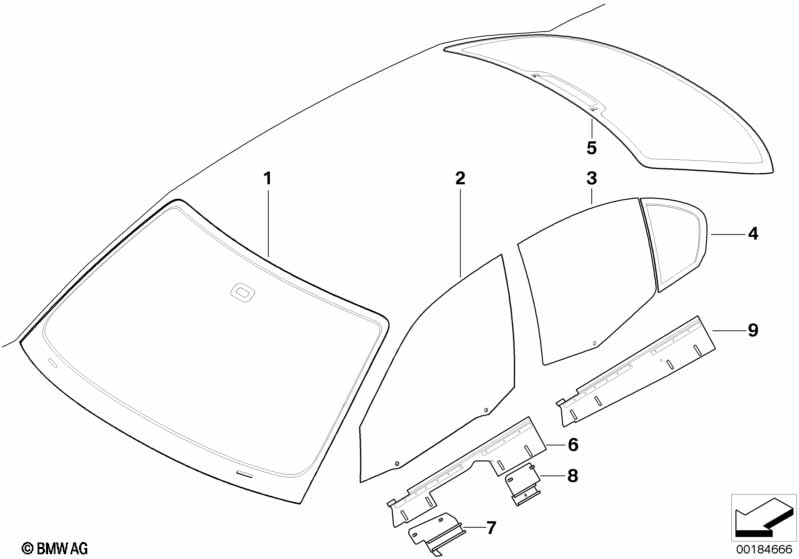

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Safety vehicle |
S106A=Yes |
||||||||
| 01 | Windshield | 1 | 51316928223 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318196162 | $32.57 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| Suitable for window heating only | ||||||||||
| 01 | Windshield | 1 | 51316928223 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318196162 | $32.57 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| 02 | Side window, front left | 1 | 51336928221 | Shop at ECS Tuning | ||||||
| 02 | Side window, front right | 1 | 51337031828 | ENDED | Shop at ECS Tuning | |||||
| 02 | Side window, front left | 1 | 51336928221 | Shop at ECS Tuning | ||||||
| Suitable for window heating only | ||||||||||
| 02 | Side window, front left | 1 | 51336928221 | Shop at ECS Tuning | ||||||
| 02 | Side window, front right | 1 | 51336928222 | Shop at ECS Tuning | ||||||
| 03 | Side window, door, left rear | 1 | 51347031829 | Shop at ECS Tuning | ||||||
| 03 | Side window, door, rear right | 1 | 51347031830 | Shop at ECS Tuning | ||||||
| 04 | Side window, door, left rear | 1 | 51357064267 | Shop at ECS Tuning | ||||||
| 04 | Side window, door, rear right | 1 | 51357064268 | Shop at ECS Tuning | ||||||
| Suitable for window heating only | ||||||||||
| 05 | Rear window | 1 | 51317064466 | Shop at ECS Tuning | ||||||
| 06 | Window brace, front left | 1 | 51337064441 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Window brace, front right | 1 | 51337064442 | +core | Shop at ECS Tuning | |||||
| 07 | Retainer, window, front left | 1 | 51317163039 | Shop at ECS Tuning | ||||||
| 07 | Retainer, window, front right | 1 | 51317163040 | Shop at ECS Tuning | ||||||
| 08 | Retainer, window, rear left | 1 | 51337163041 | Shop at ECS Tuning | ||||||
| 08 | Retainer, window, rear right | 1 | 51337163042 | Shop at ECS Tuning | ||||||
| 09 | Window mount, rear left | 1 | 51357064289 | Shop at ECS Tuning | ||||||
| 09 | Window mount, rear right | 1 | 51357064290 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
