M Trim, front for BMW 5 Series E60 530i (2007)
This M Trim, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package or M Aerodynamics package or Aerodynamics package |
P337A=Yes S715A=Yes S716A=Yes |
||||||||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Trim cover, bumper, primed, front | M | 1 | 51117897208 | $643.45 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 1 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Kit dummy trim | GEN 4.2 | 1 | 51125A3F542 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | M | 1 | 51117897208 | $643.45 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112411732 | Shop at ECS Tuning | |||||
| 02 | Body nut | ST 4,8-6-ZNS3 | 4 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | 4 | 07146959896 | $0.38 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | ISA M6X18 SW | 5 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Screw | 3 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Support, side panel front left | 1 | 51117033705 | $11.37 | Shop at ECS Tuning | |||||
| 06 | Support, side panel front right | 1 | 51117033706 | $11.37 | Shop at ECS Tuning | |||||
| 07 | Sheet metal screw | ST 6,3 X 25 | 6 | 07119904935 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST 6,3 - 9 | 6 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51110397279 | ENDED | Shop at ECS Tuning | ||||
| 09 | Flap, towing eye, primed | M | 1 | 51117897210 | $12.39 | Shop at ECS Tuning | ||||
| 10 | Holding strap | 1 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Grid, center | M | 1 | 51117896586 | $72.27 | +core | Shop at ECS Tuning | |||
| 12 | Grid left | M | 1 | 51117897186 | $36.13 | Shop at ECS Tuning | ||||

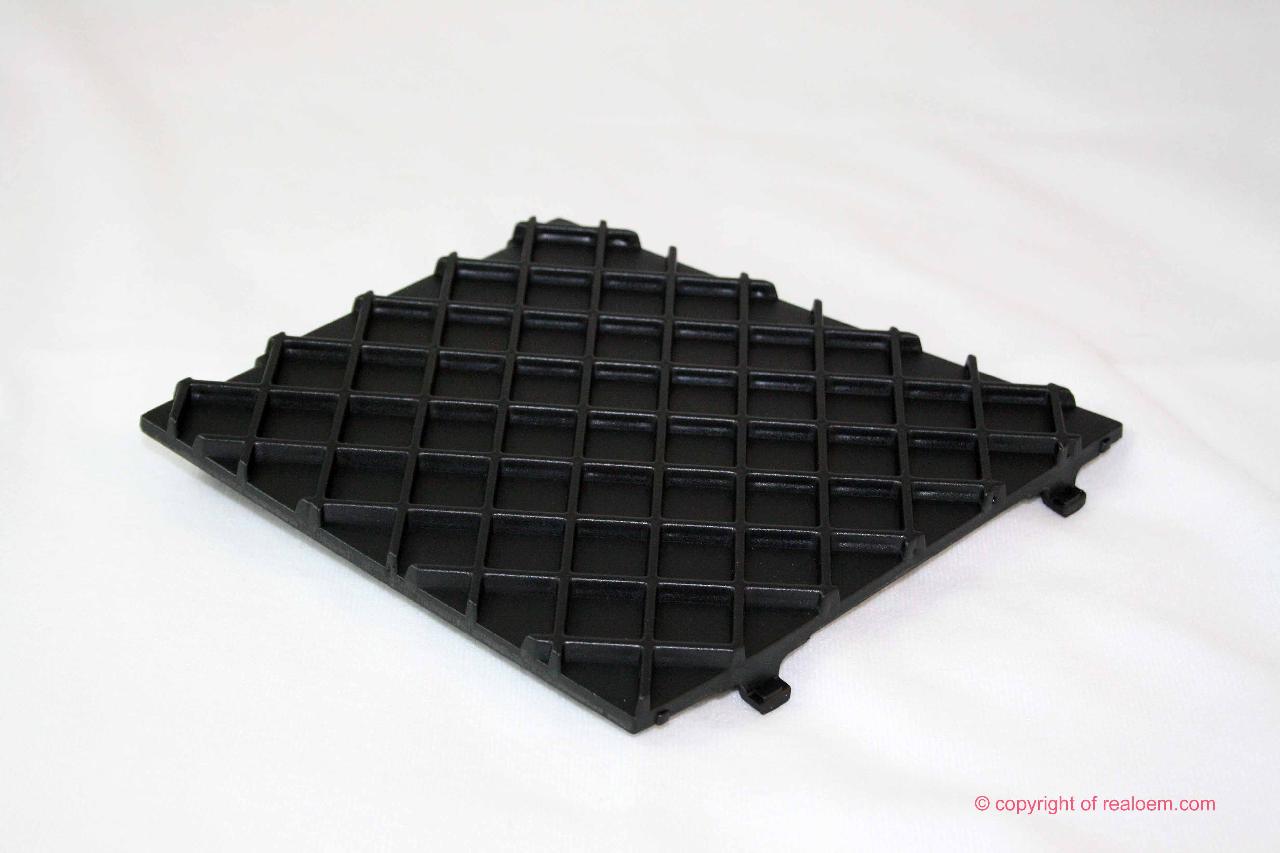

| 13 | Grid, right | M | 1 | 51117897184 | $36.13 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control or Active cruise control+Stop&Go function |
S541A=Yes S5DFA=Yes |
|||||||||
| 14 | Grid ACC, right | M | 1 | 51117897183 | $36.13 | Shop at ECS Tuning | ||||
| 15 | Cover, air duct, brake left | 1 | 51117060969 | $5.42 | Shop at ECS Tuning | |||||
| 15 | Cover, air duct, brake right | 1 | 51117060970 | $5.42 | Shop at ECS Tuning | |||||
| 16 | Front left brake air duct | M | 1 | 51117896587 | $33.90 | Shop at ECS Tuning | ||||
| 16 | Front right brake air duct | M | 1 | 51117896588 | $33.90 | Shop at ECS Tuning | ||||
| 17 | C-clip nut | M6 | 6 | 07142452506 | Shop at ECS Tuning | |||||
| 18 | Torx bolt | M6X22 | 2 | 07147075867 | $0.65 | Shop at ECS Tuning | ||||
| 19 | Expanding rivet | 2 | 51467002606 | $0.45 | Shop at ECS Tuning | |||||
| 20 | Supporting ledge | 1 | 51117063835 | $14.06 | ENDED | Shop at ECS Tuning | ||||
| 21 | Flap, painted left | CODE - UNI/MET. | 1 | 51110397277 | ENDED, +core | Shop at ECS Tuning | ||||
| 21 | Flap, painted, right | CODE - UNI/MET. | 1 | 51110397278 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 21 | Flap prime coatedleft | M | 1 | 51117897211 | $19.75 | Shop at ECS Tuning | ||||
| 21 | Flap prime coated right | M | 1 | 51117897212 | $19.75 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||

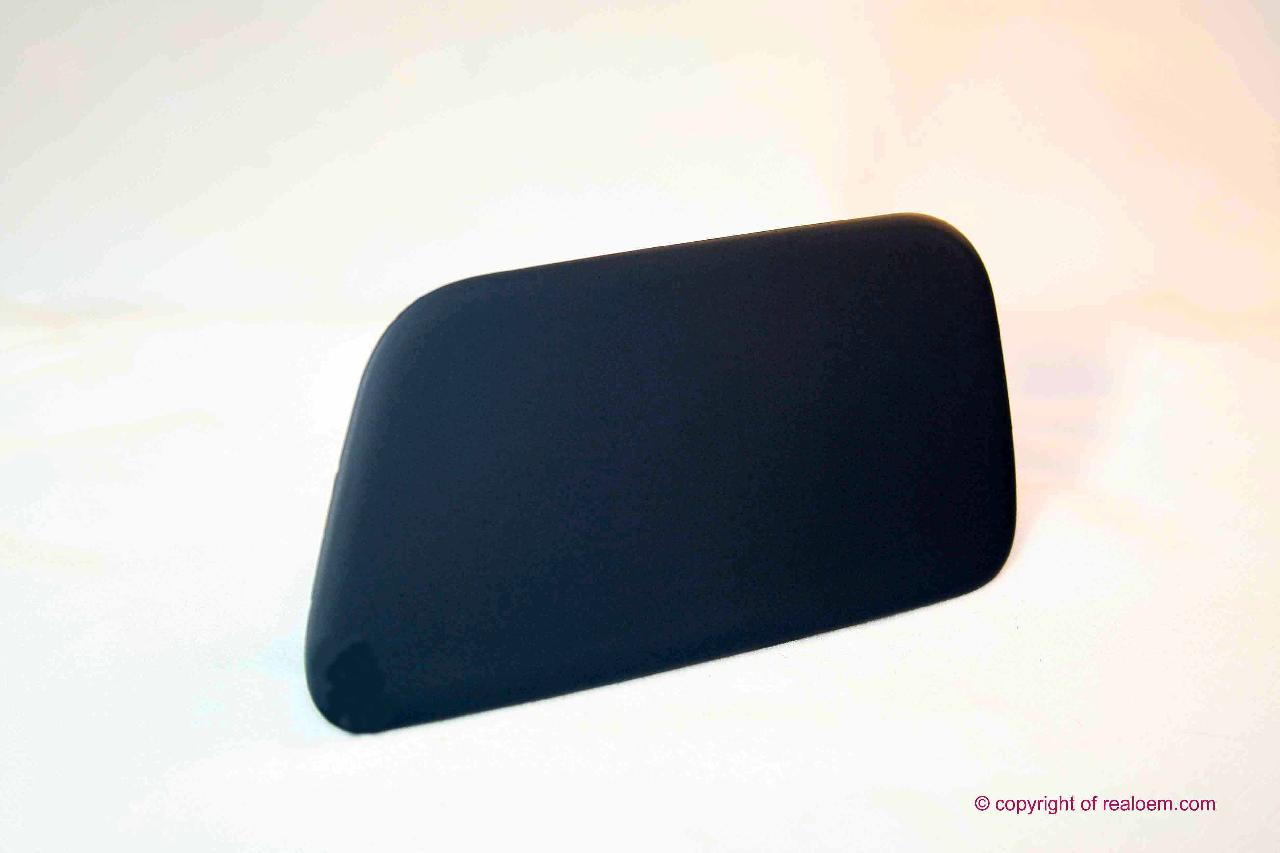

| 21 | Flap prime coatedleft | 1 | 51117111741 | $7.34 | Shop at ECS Tuning | |||||
| 21 | Flap prime coated right | 1 | 51117111742 | $7.34 | Shop at ECS Tuning | |||||
| 22 | Lever left | M | 1 | 51117896601 | $2.98 | Shop at ECS Tuning | ||||
| 22 | Lever right | M | 1 | 51117896602 | $2.98 | Shop at ECS Tuning | ||||
| 23 | Spring | 2 | 51117061659 | $1.90 | Shop at ECS Tuning | |||||
| 24 | Dummy plug left | M | 1 | 51117896597 | $1.31 | Shop at ECS Tuning | ||||
| 24 | Dummy plug right | M | 1 | 51117896598 | $1.31 | Shop at ECS Tuning | ||||
| 25 | Licence plate base painted | CODE - UNI/MET. | 1 | 51110394347 | ENDED, +core | Shop at ECS Tuning | ||||
| 25 | Licence plate base primed | M | 1 | 51117897271 | $36.15 | Shop at ECS Tuning | ||||
| 26 | Licence plate base primed | M | 1 | 51117897272 | $39.07 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 26 | Licence plate base painted | CODE - UNI/MET. | 1 | 51110394348 | ENDED, +core | Shop at ECS Tuning | ||||
| 26 | Licence plate base primed | M | 1 | 51117897272 | $39.07 | Shop at ECS Tuning | ||||
| 27 | Fillister head screw | TS5X20 | 2 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| 28 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 29 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 30 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 30 | Covering cap | GOLDGELB | 2 | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| 30 | Covering cap | DUNKELBLAU | 2 | 64111375497 | $0.20 | Shop at ECS Tuning | ||||
| 31 | Cover, fog lamp, left | M | 1 | 51117896603 | $18.16 | Shop at ECS Tuning | ||||
| 31 | Cover, fog lamp, right | M | 1 | 51117896604 | $18.16 | Shop at ECS Tuning | ||||
| 32 | Adapter | M | 2 | 51117896611 | $20.58 | Shop at ECS Tuning | ||||

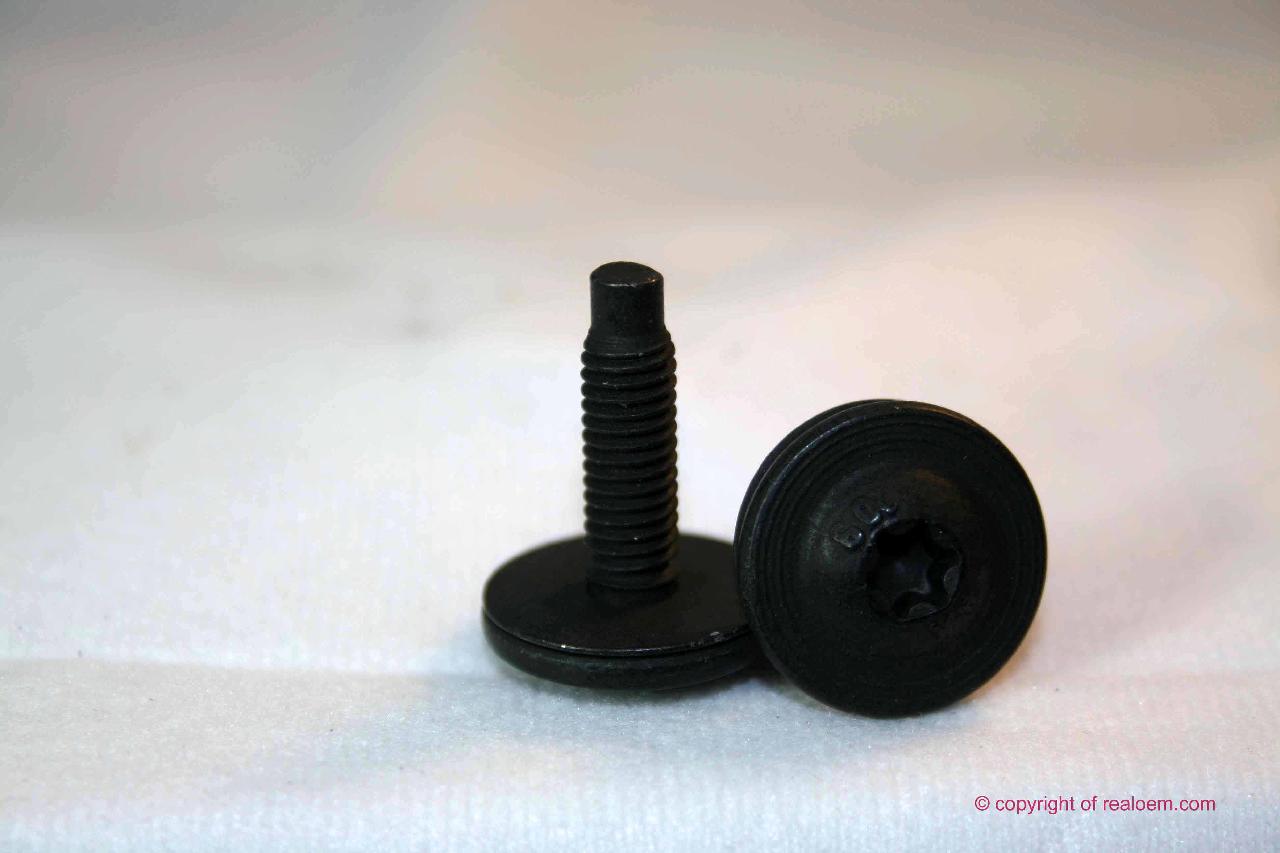

| 33 | Oval-head screw with washer | ISA M6X21 | 5 | 07147263759 | Shop at ECS Tuning | |||||
| 34 | Clip | 2 | 07147142326 | $0.28 | Shop at ECS Tuning | |||||
| 35 | Hex head screw | ST 4,8X18 SW8 | 2 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 36 | Adapter strip | M | 1 | 51118032081 | $16.58 | Shop at ECS Tuning | ||||
| 37 | Fillister head self-tapping screw | ST4,8X16 | 5 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with BMW Night Vision |
S611A=Yes |
|||||||||
| 38 | Grid left | M - NIVI | 1 | 51117897185 | $36.13 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
