M Trim, rear for BMW 5 Series E61 523i (2007)

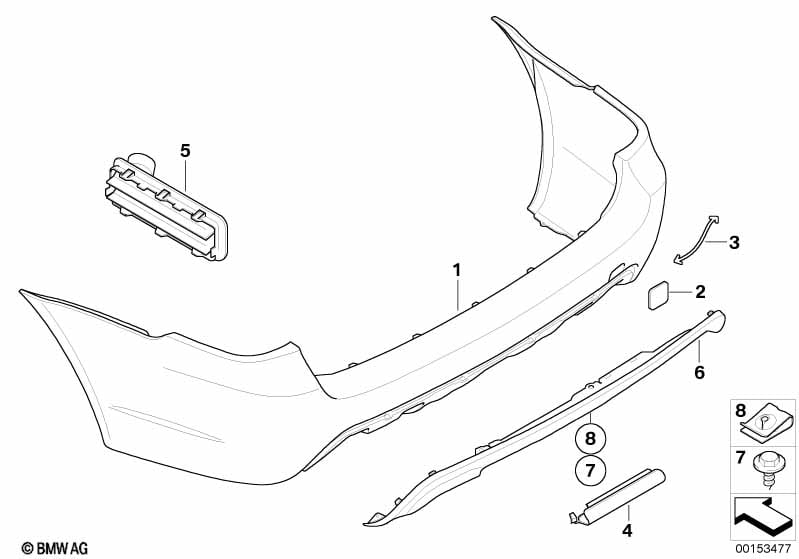

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package or M Aerodynamics package or Aerodynamics package |
P337A=Yes S715A=Yes S716A=Yes |
||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127897266 | $708.88 | +core | Shop at ECS Tuning | |||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127897267 | $742.97 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Kit dummy trim | GEN 4.2 | 1 | 51125A3F542 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel, painted, rear | CODE - UNI/MET. | 1 | 51110394702 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51127897267 | $742.97 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) When ordering indicate color code |
S508A=Yes |
|||||||||
| 01 | Bumper trim panel, painted, rear | CODE - UNI/MET. | 1 | 51110394703 | ENDED | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, primed | M | 1 | 51127897269 | $12.39 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51110397280 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Holding strap | 1 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 04 | Trailer hitch flap, prime-coated | M | 1 | 51127897224 | $36.23 | +core | Shop at ECS Tuning | |||
| For vehicles with Towing hitch, detachable When ordering indicate color code |
S235A=Yes |
|||||||||
| 04 | Trailer hitch flap, painted | CODE - UNI/MET. | 1 | 51120395207 | $94.86 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear ventilation | 2 | 03/2007 | 64229303806 | Shop at ECS Tuning | |||||
| For vehicles with DVD changer |
S696A=Yes |
|||||||||
| 05 | Rear ventilation | 1 | 03/2007 | 64226910722 | $8.23 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear ventilation, left | 1 | 03/2007 | 64226914208 | $31.50 | Shop at ECS Tuning | ||||
| 06 | Cover for diffuser, primed | M | 1 | 51127897215 | $54.57 | +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 06 | Cover for diffuser, painted | CODE - UNI/MET. | 1 | 51120395228 | $202.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 06 | Cover for diffuser, primed | M | 1 | 51127897216 | $54.57 | +core | Shop at ECS Tuning | |||
| For vehicles with Towing hitch, detachable When ordering indicate color code |
S235A=Yes |
|||||||||
| 06 | Cover for diffuser, painted | CODE - UNI/MET. | 1 | 51120395231 | $202.00 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Screw | ST 4.8X13 | 6 | 07149156623 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Clip for sheet metal nut | 4.8X13 | 6 | 07146954937 | $0.18 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
