Trim cover, front for BMW 7 Series E66 740Li (2008)

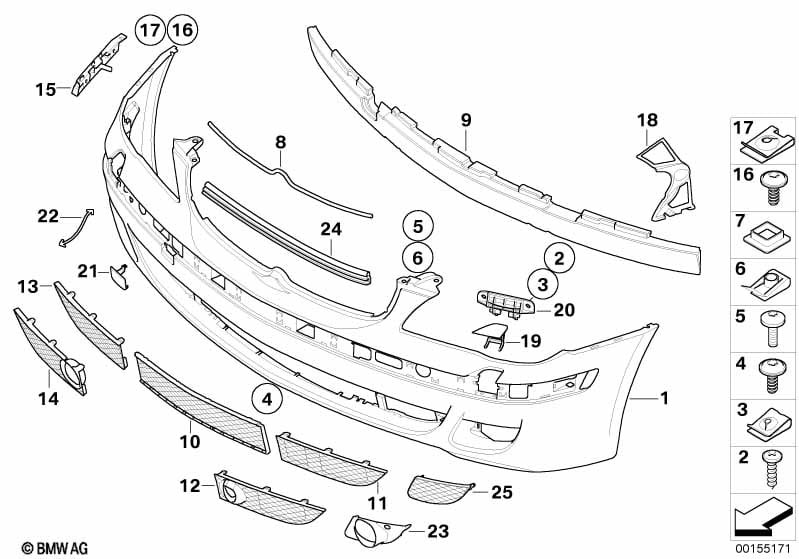

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 03/2005 | 51117142156 | $576.65 | +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Painted front bumper trim | CODE - UNI/MET. | 1 | 03/2005 | 51110395300 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Screw | ST 4.8X13 | 4 | 03/2005 | 07149156623 | $0.73 | Shop at ECS Tuning | |||
| 03 | Body nut | ST 4,8-9-ZSN SW | 4 | 03/2005 | 07129900629 | $0.25 | Shop at ECS Tuning | |||
| 04 | Fillister head screw | 2 | 03/2005 | 07146959896 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | ISA M6X18 SW | X | 03/2005 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 06 | C-clip nut | M6-ZNS3 | 2 | 03/2005 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
| 07 | Spacer sleeve | 2 | 03/2005 | 51117071270 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Gasket | 1 | 03/2005 | 51117174172 | $16.73 | Shop at ECS Tuning | ||||
| 09 | Shock absorber front | 1 | 03/2005 | 51117135524 | $41.79 | +core | Shop at ECS Tuning | |||
| 10 | Grid, center | 1 | 03/2005 | 51117135573 | $39.39 | Shop at ECS Tuning | ||||
| 11 | Grid lateral left | 1 | 03/2005 | 51117135563 | $39.39 | Shop at ECS Tuning | ||||
| For vehicles with BMW Night Vision |
S611A=Yes |
|||||||||
| 12 | Grid lateral left | NIVI | 1 | 03/2005 | 51117135565 | $39.39 | Shop at ECS Tuning | |||
| 13 | Grid lateral right | 1 | 03/2005 | 51117135564 | $39.39 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 14 | Grid lateral right | ACC | 1 | 03/2005 | 51117135566 | $39.39 | Shop at ECS Tuning | |||
| 15 | Support left | 1 | 03/2005 | 51117135575 | $13.88 | Shop at ECS Tuning | ||||
| 15 | Support right | 1 | 03/2005 | 51117135576 | $13.88 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | 4 | 03/2005 | 07146959896 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST 4,8-8-ZNS | 4 | 03/2005 | 07129904227 | $0.27 | Shop at ECS Tuning | |||
| 18 | Spacer left | 1 | 03/2005 | 51117142323 | $4.53 | Shop at ECS Tuning | ||||
| 18 | Spacer right | 1 | 03/2005 | 51117142324 | $4.53 | Shop at ECS Tuning | ||||
| 19 | Flap prime coatedleft | 1 | 03/2005 | 51117142161 | $19.75 | Shop at ECS Tuning | ||||
| 19 | Flap prime coated right | 1 | 03/2005 | 51117142162 | $19.75 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 19 | Flap, painted left | CODE - UNI/MET. | 1 | 03/2005 | 51110395301 | ENDED, +core | Shop at ECS Tuning | |||
| 19 | Flap, painted, right | CODE - UNI/MET. | 1 | 03/2005 | 51110395302 | ENDED, +core | Shop at ECS Tuning | |||
| 20 | Supporting bracket | 2 | 03/2005 | 51117142159 | $4.64 | Shop at ECS Tuning | ||||
| 21 | Flap, towing eye, primed | 1 | 03/2005 | 51117135569 | $12.39 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 21 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 03/2005 | 51110395303 | ENDED, +core | Shop at ECS Tuning | |||
| 22 | Holding strap | 1 | 03/2005 | 51111973721 | $0.77 | Shop at ECS Tuning | ||||
| 23 | Cover, fog lamp, left | 1 | 03/2005 | 51117142179 | $10.20 | Shop at ECS Tuning | ||||
| 23 | Cover, fog lamp, right | 1 | 03/2005 | 51117142180 | $10.20 | Shop at ECS Tuning | ||||
| 24 | Gasket | 1 | 03/2005 | 51117174172 | $16.73 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
