Cover door sill / wheel arch for BMW 7 Series E65 750i (2008)

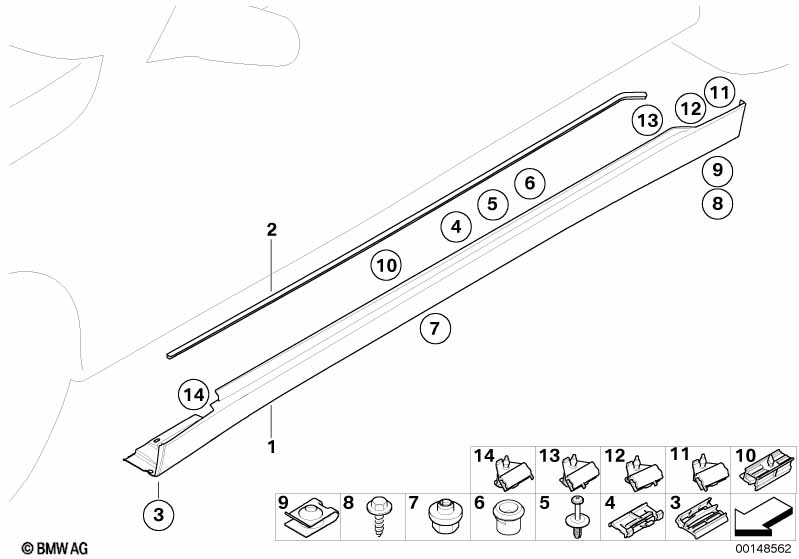

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door sill cover, primed left | 1 | 03/2005 | 51717148545 | $264.68 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door sill cover, primed right | 1 | 03/2005 | 51717148546 | $264.68 | +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Door sill cover, painted left | CODE - UNI/MET. | 1 | 03/2005 | 51710395481 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover, door sill, painted right | CODE - UNI/MET. | 1 | 03/2005 | 51710395482 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Clip | ROT | X | 03/2005 | 51717037377 | $1.44 | Shop at ECS Tuning | |||
| 05 | Expanding rivet | X | 03/2005 | 51718259788 | $0.37 | Shop at ECS Tuning | ||||
| 06 | Grommet, green | D=9,1MM | X | 03/2005 | 51711932996 | $0.23 | Shop at ECS Tuning | |||
| 07 | Hex nut | 2 | 03/2005 | 61358230971 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Body nut | ST4,8-9-ZNS3 | 8 | 03/2005 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 10 | Clip | BRAUN | X | 03/2005 | 51117135538 | $1.69 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
