Outside mirror for BMW 3 Series E90 320d (2008)

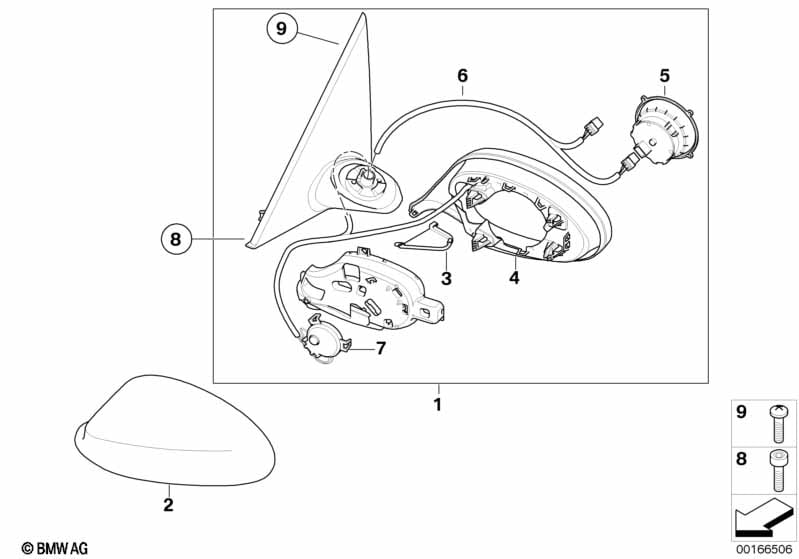

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package and Fold-in outside mirror and Interior/outside mirror with auto dip and High gloss shadow line |
P337A=No S313A=No S430A=No S760A=No |
||||||||
| For vehicles with and WITHOUT Mirror heating |
||||||||||
| 01 | heated outside mirror, left | 1 | 51167189945 | $206.42 | ENDED | Shop at ECS Tuning | ||||
| 01 | heated outside mirror, right | 1 | 51167189946 | $206.42 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory For vehicles with and WITHOUT Mirror heating |
S459A=Yes |
|||||||||
| 01 | Outside mirror heated with memory, left | 1 | 51167189955 | $330.25 | ENDED | Shop at ECS Tuning | ||||
| 01 | Outside mirror heated with memory,right | 1 | 51167189956 | $330.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering primend left | 1 | 51167135097 | $54.32 | Shop at ECS Tuning | |||||
| 02 | Covering primend right | 1 | 51167135098 | $54.32 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Cover cap, painted, right | CODE - UNI/MET. | 1 | 51160032724 | $138.38 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover cap, painted, left | CODE - UNI/MET. | 1 | 51160032725 | $138.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Set of covers mirror baseplate | 1 | 51167170565 | $22.99 | Shop at ECS Tuning | |||||
| 04 | Supporting ring left | 1 | 51167170563 | $26.22 | ENDED | Shop at ECS Tuning | ||||
| 04 | Supporting ring right | 1 | 51167170564 | $26.22 | Shop at ECS Tuning | |||||
| 05 | Drive, outside mirror left | 1 | 67137191402 | $84.48 | Shop at ECS Tuning | |||||
| 05 | Drive, outside mirror left | 1 | 67135B44037 | Shop at ECS Tuning | ||||||
| 05 | Drive, outside mirror right | 1 | 67137191405 | $84.48 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| 06 | Wiring set electr.exterior mirrors | 1 | 67136940596 | $27.37 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 07 | Wiring electr.ext.mirror drivers side | 1 | 67136972536 | $114.60 | Shop at ECS Tuning | |||||
| 07 | Wiring electr.ext.mirror co-driver side | 1 | 67136972537 | $114.60 | Shop at ECS Tuning | |||||
| 08 | Torx screw with washer | ISA M6X17 | 3 | 07146961019 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | 3X12 | 3 | 51167177434 | $1.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
