Interior moldings Titan Line for BMW 3 Series E90 320d (2008)
This Interior moldings Titan Line technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative strip, dashboard left | TITAN 90 | 1 | 51456970074 | $15.12 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers Titanium matt |
S4AGA=Yes |
|||||||||
| 01 | Decorative strip, dashboard left | TITAN 90 | 1 | 51456970074 | $15.12 | Shop at ECS Tuning | ||||
| 02 | Decorative strip, dashboard right | TITAN 90 | 1 | 51456970075 | $43.41 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers Titanium matt |
S4AGA=Yes |
|||||||||
| 02 | Decorative strip, dashboard right | TITAN 90 | 1 | 51456970075 | $43.41 | ENDED | Shop at ECS Tuning | |||
| 03 | Decorative strip, door front left | TITAN 90 | 1 | 51416970555 | $30.20 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front right | TITAN 90 | 1 | 51416970556 | $30.20 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers Titanium matt |
S4AGA=Yes |
|||||||||
| 03 | Decorative strip, door front left | TITAN 90 | 1 | 51416970555 | $30.20 | Shop at ECS Tuning | ||||
| 03 | Decorative strip, door front right | TITAN 90 | 1 | 51416970556 | $30.20 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door rear left | TITAN 90 | 1 | 51426970557 | $16.25 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door rear right | TITAN 90 | 1 | 51426970558 | $16.25 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers Titanium matt |
S4AGA=Yes |
|||||||||
| 04 | Decorative strip, door rear left | TITAN 90 | 1 | 51426970557 | $16.25 | Shop at ECS Tuning | ||||
| 04 | Decorative strip, door rear right | TITAN 90 | 1 | 51426970558 | $16.25 | Shop at ECS Tuning | ||||
| 05 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 06 | Threaded bolt | D=6X12 | 7 | 51416976220 | $1.04 | Shop at ECS Tuning | ||||
| 06 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Plug-in retainer | 10 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||

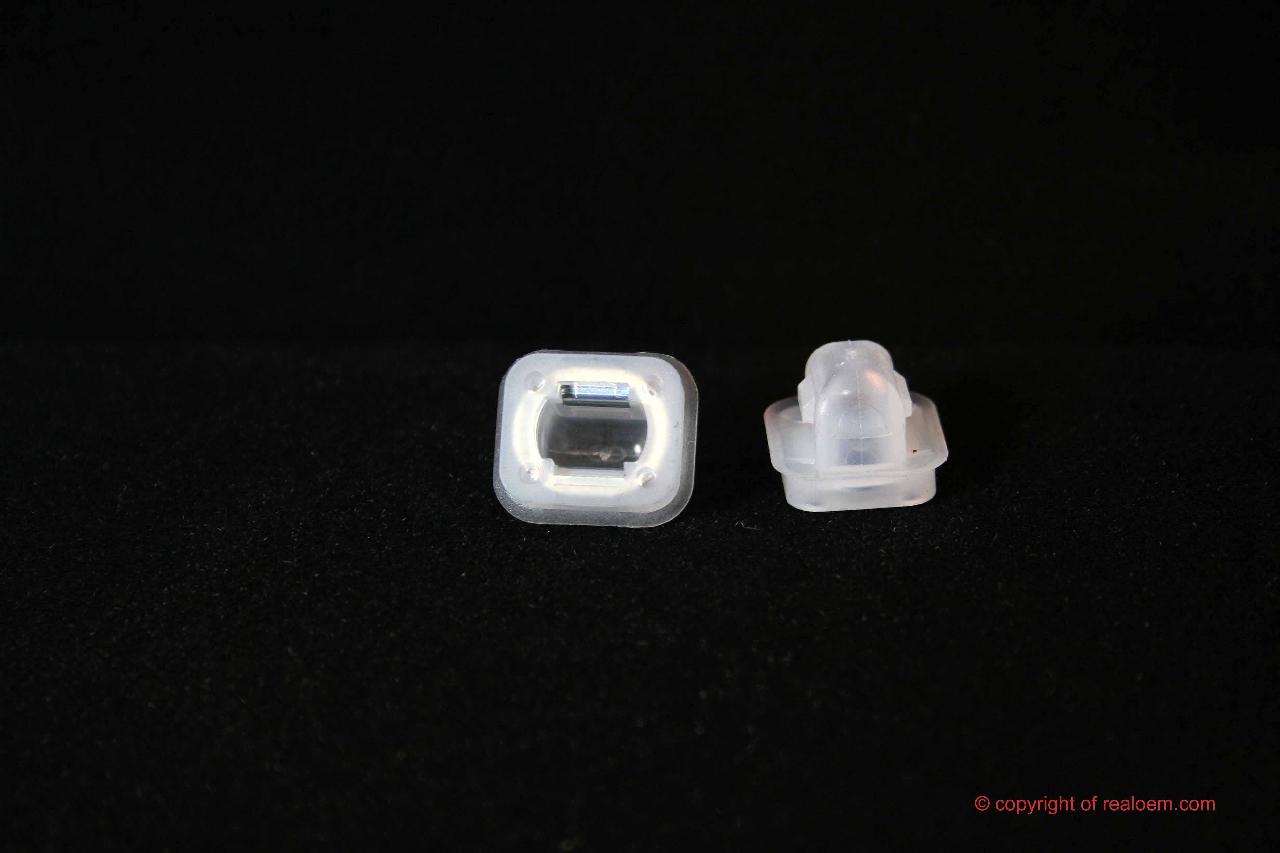

| 08 | Plug-in retainer | 18 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 09 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Interior moldings Titan Line?
- This technical diagram illustrates the Interior moldings Titan Line within the Vehicle trim group for the 3 Series E90 320d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Decorative strip, dashboard left (Part #51456970074).
- Which models use the hardware listed in this Interior moldings Titan Line?
- The hardware and components featured in the Interior moldings Titan Line are specific to the 3 Series E90 320d produced during 2008. These technical specifications ensure that parts like the Decorative strip, dashboard left (51456970074) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior moldings Titan Line assembly?
- Each item in the Interior moldings Titan Line corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Decorative strip, dashboard left by locating its position on the schematic, which then links to the official BMW part number 51456970074 for the Vehicle trim section.
