Cup holder for BMW 3 Series E93 LCI 330i (2013)

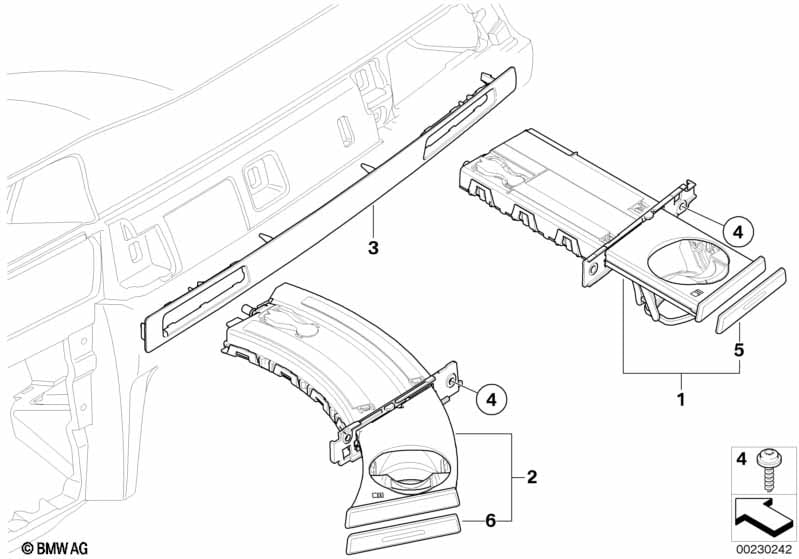

This Cup holder technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 01 | Cup holder left | CHROM CREAMBGE. | 1 | 51459174146 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Cup holder left | CHROM SCHWARZ | 1 | 09/2011 | 51459173470 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 01 | Cup holder left | CHROM SCHWARZ | 1 | 09/2008 | 51459173470 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 02 | Cup holder right | CHROM CREAMBGE. | 1 | 09/2008 | 51459174144 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Cup holder right | CHROM SCHWARZ | 1 | 09/2011 | 51459173464 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 02 | Cup holder right | CHROM SCHWARZ | 1 | 09/2008 | 51459173464 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 03 | Decor strip, drinks holder | CREAMBEIGE | 1 | 51456957249 | $15.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 03 | Decor strip, drinks holder | SCHWARZ | 1 | 09/2011 | 51457144256 | $15.29 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 03 | Decor strip, drinks holder | SCHWARZ | 1 | 51457144256 | $15.29 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,2X22 SW | 4 | 07119901182 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 4 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 05 | Covering left | CREAMBEIGE | 1 | 09/2008 | 51459229107 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 05 | Covering left | SCHWARZ | 1 | 09/2011 | 51459229104 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 05 | Covering left | SCHWARZ | 1 | 09/2008 | 51459229104 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 06 | Covering right | CREAMBEIGE | 1 | 09/2008 | 51459229103 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 06 | Covering right | SCHWARZ | 1 | 09/2011 | 51459229100 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 06 | Covering right | SCHWARZ | 1 | 09/2008 | 51459229100 | Shop at ECS Tuning | ||||
