Fine wood trim poplar grain for BMW 3 Series E90 320i (2005)

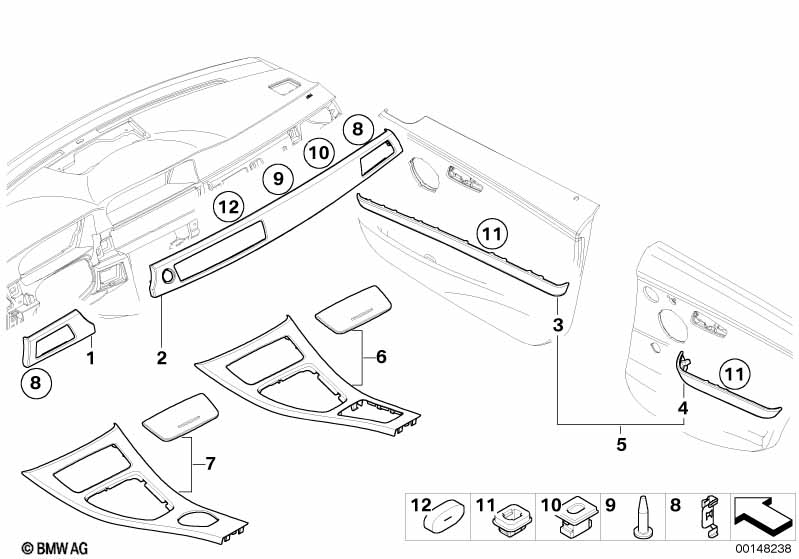

This Fine wood trim poplar grain technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine wood trim poplar grain |
S4ACA=Yes |
|||||||||
| 01 | Cover, dashboard, poplar woodgrain,right | 1 | 09/2008 | 51457139766 | $106.30 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, poplar woodgrain, left | 1 | 09/2008 | 51457139765 | $263.38 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Trim piece door, poplar grain,front left | 1 | 09/2008 | 51417138869 | $189.10 | Shop at ECS Tuning | ||||
| 03 | Trim piece door,poplar grain,front right | 1 | 09/2008 | 51417138870 | $189.10 | Shop at ECS Tuning | ||||
| 04 | Trim piece door, poplar grain, rear left | 1 | 09/2008 | 51427138871 | $110.79 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim piece door, poplar grain,rear right | 1 | 09/2008 | 51427138872 | $110.79 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Set decorative strips, poplar woodgrain | 1 | 09/2008 | 51416952725 | $637.86 | Shop at ECS Tuning | ||||
| 06 | Set decorative strips, poplar woodgrain | 1 | 09/2008 | 51167129554 | $504.43 | +core | Shop at ECS Tuning | |||
| 07 | Set decorative strips, poplar woodgrain | 1 | 09/2008 | 51167137479 | $504.43 | +core | Shop at ECS Tuning | |||
| 08 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Threaded bolt | D=6X30 | 7 | 51458266813 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 10 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 18 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320i Fine wood trim poplar grain?
- This technical diagram illustrates the Fine wood trim poplar grain within the Vehicle trim group for the 3 Series E90 320i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Cover, dashboard, poplar woodgrain,right (Part #51457139766).
- Which models use the hardware listed in this Fine wood trim poplar grain?
- The hardware and components featured in the Fine wood trim poplar grain are specific to the 3 Series E90 320i produced during 2005. These technical specifications ensure that parts like the Cover, dashboard, poplar woodgrain,right (51457139766) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fine wood trim poplar grain assembly?
- Each item in the Fine wood trim poplar grain corresponds to the numbered list below the illustration. For the 3 Series E90 320i, you can identify the Cover, dashboard, poplar woodgrain,right by locating its position on the schematic, which then links to the official BMW part number 51457139766 for the Vehicle trim section.
