Center console storing partition for BMW 3 Series E90 320i (2008)

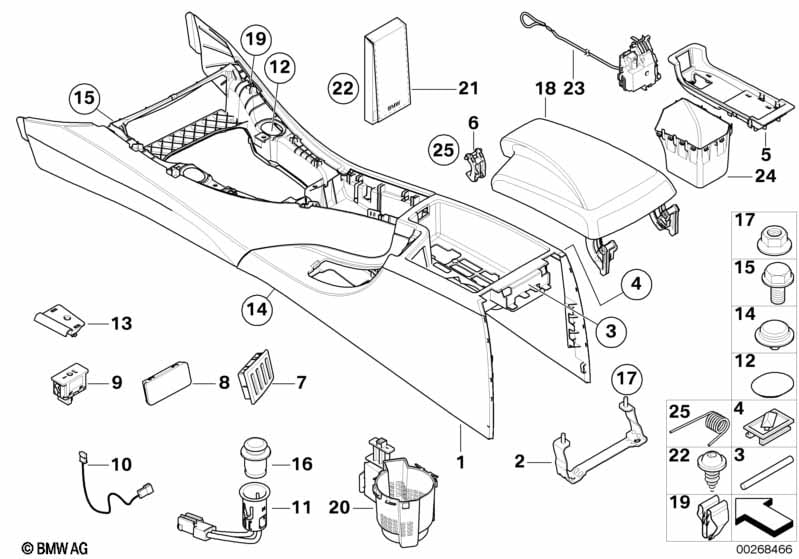

This Center console storing partition technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Fluid" or "Linea"/grey or Leather "Dakota"/grau |
ALAD=Yes LCAD=Yes |
|||||||||
| 01 | Console | GRAU | 1 | 51167130693 | $448.63 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Console | GRAU | 1 | 51169153216 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Console | BEIGE | 1 | 51167130694 | $407.24 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAT=Yes ANAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 01 | Console | SCHWARZ | 1 | 09/2008 | 51167130692 | $448.63 | Shop at ECS Tuning | |||
| 02 | Bracket, center console rear | 1 | 51167127107 | $5.30 | Shop at ECS Tuning | |||||
| 03 | Pin | 2 | 51167132377 | $2.40 | Shop at ECS Tuning | |||||
| 04 | Bracket, plug connection white | 2 | 61131378997 | $0.87 | Shop at ECS Tuning | |||||
| 05 | Cover telephone | 1 | 51167118054 | $22.93 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes LCAD=Yes |
|||||||||
| 06 | Support, locking hook | GRAU | 1 | 51167153717 | $2.17 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 06 | Support, locking hook | BEIGE | 1 | 51167153718 | $2.17 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather "Novillo"extended/black |
ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDSW=Yes |
|||||||||
| 06 | Support, locking hook | SCHWARZ | 1 | 51167153716 | $2.17 | Shop at ECS Tuning | ||||
| 08 | Blind plate | SCHWARZ | 1 | 64228385142 | $6.60 | Shop at ECS Tuning | ||||
| 10 | Wiring set AUX | 1 | 61129172021 | Shop at ECS Tuning | ||||||
| For vehicles with USB/Audio interface |
S6FLA=Yes |
|||||||||
| 10 | Wires for AUX and USB | 385MM | 1 | 61129187009 | $54.67 | Shop at ECS Tuning | ||||
| 11 | Plug-in socket with plug | 1 | 61346947184 | $17.73 | Shop at ECS Tuning | |||||
| 12 | Blind plug | 30X36MM | 2 | 51711872829 | $0.89 | Shop at ECS Tuning | ||||
| 13 | Bracket front left | 1 | 51167130721 | $2.23 | Shop at ECS Tuning | |||||
| 13 | Bracket front right | 1 | 51167130722 | $2.23 | Shop at ECS Tuning | |||||
| 14 | Stop buffer | 2 | 51248148859 | $0.47 | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Mounting screw | M6 | 2 | 07149146435 | $1.16 | Shop at ECS Tuning | ||||
| 16 | Stopper plug-in socket | 1 | 61349316116 | Shop at ECS Tuning | ||||||
| 17 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 18 | Cover, centre console | BEIGE | 1 | 51167147213 | $316.94 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 18 | Cover, centre console | GRAU | 1 | 51169133809 | Shop at ECS Tuning | |||||
| For vehicles with beige |
B4=Yes |
|||||||||
| 18 | Cover, centre console | BEIGE | 1 | 51167137558 | $199.76 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 18 | Cover, centre console | TERRA | 1 | 51167157814 | $316.94 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 18 | Cover, centre console | LEMON | 1 | 51167157813 | $316.94 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" |
ALAD=Yes AWAD=Yes |
|||||||||
| 18 | Cover, centre console | GRAU | 1 | 51167137557 | $199.76 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
FFAT=Yes FFB5=Yes FFB6=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 18 | Cover, centre console | SCHWARZ | 1 | 51169133808 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "Fluid"/corn or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black |
ALAT=Yes ALB3=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes |
|||||||||
| 18 | Cover, centre console | SCHWARZ | 1 | 51167137556 | $199.76 | Shop at ECS Tuning | ||||
| 19 | Clamp | 8 | 07147321144 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic air conditioning and Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Leather "Dakota"/grau |
S534A=Yes ALAD=Yes AWAD=Yes LCAD=Yes |
|||||||||
| 20 | Oddments tray centre console, rear | GRAU | 1 | 51167138588 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning and Cloth "Fluid"/beige or Sensatec/beige or Leather "Dakota"/beige |
S534A=Yes ALB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 20 | Oddments tray centre console, rear | BEIGE | 1 | 51167138589 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning and Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather "Novillo"extended/black |
S534A=Yes ALAT=Yes ANAT=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCSW=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDSW=Yes |
|||||||||
| 20 | Oddments tray centre console, rear | SCHWARZ | 1 | 51167138587 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface |
S6FLA=Yes |
|||||||||
| 21 | Multimedia holder in center console | 1 | 51169148062 | $53.82 | Shop at ECS Tuning | |||||
| 22 | Fillister head screw | TS 4X9,5 | 3 | 07149158767 | $0.19 | Shop at ECS Tuning | ||||
| 25 | Spring | 1 | 51169272773 | Shop at ECS Tuning | ||||||
